SUN HYDRAULICS
CXBBBCN
$35.65 USD
- SUN HYDRAULICS
- Material:CXBBBCN
- Model:CXBB-BCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXBBBCN (CXBBBCN) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow and minimal leakage. The valve facilitates free flow from the inlet port 1 to the outlet port 2 while blocking flow in the reverse direction, ensuring operational efficiency and safety in hydraulic systems. This model is built to accommodate a maximum operating pressure of 5000 psi (350 bar) and has a flow capacity of up to 10 gpm (40 L/min), making it suitable for various industrial applications. The CXBBBCN features Sun's innovative floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining, thereby enhancing durability and performance stability. With an extremely low maximum leakage rate of less than 1 drop per minute (0.07 cc/min), the valve ensures precise fluid control, vital for maintaining system integrity and preventing fluid loss. Designed for use in T-16A series cavities, this check valve model adheres to rigorous quality standards. The robust construction includes a seal kit with Viton components (990162006) for enhanced chemical resistance and operational longevity under diverse conditions. Additionally, the valve\u2019s hex size is 3/4 inch (19.1 mm), with an installation torque range of 20 - 25 lbf ft (27 - 33 Nm), and it weighs approximately .20 lb (0.10 kg), facilitating easy installation and maintenance without compromising on reliability or performance.
The Sun Hydraulics CXBBBCN (CXBBBCN) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow and minimal leakage. The valve facilitates free flow from the inlet port 1 to the outlet port 2 while blocking flow in the reverse direction, ensuring operational efficiency and safety in hydraulic systems. This model is built to accommodate a maximum operating pressure of 5000 psi (350 bar) and has a flow capacity of up to 10 gpm (40 L/min), making it suitable for various industrial applications. The CXBBBCN features Sun's innovative floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining, thereby enhancing durability and performance stability. With an extremely low maximum leakage rate of less than 1 drop per minute (0.07 cc/min), the valve ensures precise fluid control, vital for maintaining system integrity and preventing fluid loss. Designed for use in T-16A series cavities, this check valve model adheres to rigorous quality standards. The robust construction includes a seal kit with Viton components (990162006) for enhanced chemical resistance and operational longevity under diverse conditions. Additionally, the valve\u2019s hex size is 3/4 inch (19.1 mm), with an installation torque range of 20 - 25 lbf ft (27 - 33 Nm), and it weighs approximately .20 lb (0.10 kg), facilitating easy installation and maintenance without compromising on reliability or performance.
Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

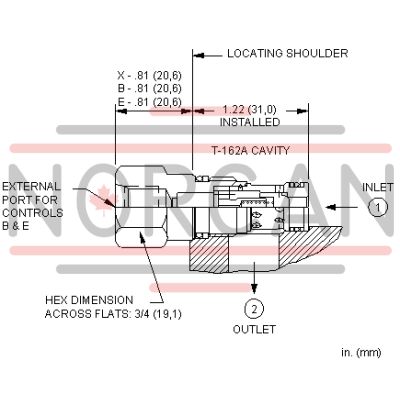

| Cavity | T-162A |
| Series | 0 |
| Capacity | 10 gpm40 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
