SUN HYDRAULICS
CXBBEAN
$35.65 USD
- SUN HYDRAULICS
- Material:CXBBEAN
- Model:CXBB-EAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXBBEAN (CXBBEAN) is a high-performance check valve designed for hydraulic applications requiring reliable, one-directional flow. This model features a free-flow design from inlet port 1 to outlet port 2, ensuring efficient operation with extremely low leakage rates of less than 1 drop per minute (0.07 cc/min). The CXBBEAN can withstand pressures up to 5000 psi (350 bar) at both ports, making it suitable for high-pressure systems. Constructed with Sun's floating style, the CXBBEAN minimizes potential internal part binding caused by excessive installation torque or variations in cavity/cartridge machining. This design consideration enhances the valve's durability and operational reliability. The valve fits within a T-16A cavity and is compatible with a Viton seal kit (990162006), which provides excellent resistance to high temperatures and chemicals. With a flow capacity of up to 10 gpm (40 L/min), the CXBBEAN is equipped to handle substantial flow rates efficiently. Its installation requires a torque between 20 - 25 lbf ft (27 - 33 Nm), and it features a hex size of 3/4 in (19.1 mm). Weighing only 0.20 lb (0.10 kg), this model is lightweight yet robust, ideal for various hydraulic circuits where space and weight are critical considerations.
The Sun Hydraulics CXBBEAN (CXBBEAN) is a high-performance check valve designed for hydraulic applications requiring reliable, one-directional flow. This model features a free-flow design from inlet port 1 to outlet port 2, ensuring efficient operation with extremely low leakage rates of less than 1 drop per minute (0.07 cc/min). The CXBBEAN can withstand pressures up to 5000 psi (350 bar) at both ports, making it suitable for high-pressure systems. Constructed with Sun's floating style, the CXBBEAN minimizes potential internal part binding caused by excessive installation torque or variations in cavity/cartridge machining. This design consideration enhances the valve's durability and operational reliability. The valve fits within a T-16A cavity and is compatible with a Viton seal kit (990162006), which provides excellent resistance to high temperatures and chemicals. With a flow capacity of up to 10 gpm (40 L/min), the CXBBEAN is equipped to handle substantial flow rates efficiently. Its installation requires a torque between 20 - 25 lbf ft (27 - 33 Nm), and it features a hex size of 3/4 in (19.1 mm). Weighing only 0.20 lb (0.10 kg), this model is lightweight yet robust, ideal for various hydraulic circuits where space and weight are critical considerations.

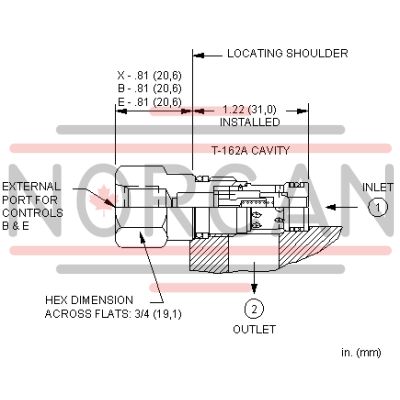

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 10 gpm40 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
