SUN HYDRAULICS
CXBBECV
$42.10 USD
- SUN HYDRAULICS
- Material:CXBBECV
- Model:CXBB-ECV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXBBECV (CXBBECV) is a precision-engineered check valve designed for hydraulic applications requiring reliable, one-way flow control. This model facilitates free flow from its inlet port 1 to the outlet port 2 while effectively blocking flow in the reverse direction, ensuring operational security and efficiency in hydraulic circuits. The CXBBECV is compatible with a T-16A cavity and belongs to the Series 0, which indicates specific design characteristics standardized by Sun Hydraulics for compatibility and performance optimization. The valve supports a maximum operating pressure of up to 5000 psi (350 bar) and can handle flow capacities up to 10 gpm (40 L/min), making it suitable for a wide range of medium to high-pressure applications. Notably, it boasts an exceptionally low leakage rate of less than one drop per minute (0.07 cc/min), highlighting its effectiveness in maintaining system integrity and reducing fluid loss. Constructed with Sun\u2019s floating style design, the CXBBECV minimizes risks associated with internal parts binding which can occur due to over-torquing during installation or variances in cavity/cartridge machining. This feature enhances the durability and reliability of the valve under varying operational conditions. The valve's hex size is 3/4 in (19.1 mm) with an installation torque range of 20 - 25 lbf\u00b7ft (27 - 33 Nm), and it weighs just 0.20 lb (0.10 kg), making it lightweight yet robust for industrial use. Additionally, this model uses Viton seals, as specified by seal kit/cartridge number 990162006, ensuring superior resistance to high temperatures and chemical degradation, further enhancing the valve's performance and longevity in challenging environments.
The Sun Hydraulics CXBBECV (CXBBECV) is a precision-engineered check valve designed for hydraulic applications requiring reliable, one-way flow control. This model facilitates free flow from its inlet port 1 to the outlet port 2 while effectively blocking flow in the reverse direction, ensuring operational security and efficiency in hydraulic circuits. The CXBBECV is compatible with a T-16A cavity and belongs to the Series 0, which indicates specific design characteristics standardized by Sun Hydraulics for compatibility and performance optimization. The valve supports a maximum operating pressure of up to 5000 psi (350 bar) and can handle flow capacities up to 10 gpm (40 L/min), making it suitable for a wide range of medium to high-pressure applications. Notably, it boasts an exceptionally low leakage rate of less than one drop per minute (0.07 cc/min), highlighting its effectiveness in maintaining system integrity and reducing fluid loss. Constructed with Sun\u2019s floating style design, the CXBBECV minimizes risks associated with internal parts binding which can occur due to over-torquing during installation or variances in cavity/cartridge machining. This feature enhances the durability and reliability of the valve under varying operational conditions. The valve's hex size is 3/4 in (19.1 mm) with an installation torque range of 20 - 25 lbf\u00b7ft (27 - 33 Nm), and it weighs just 0.20 lb (0.10 kg), making it lightweight yet robust for industrial use. Additionally, this model uses Viton seals, as specified by seal kit/cartridge number 990162006, ensuring superior resistance to high temperatures and chemical degradation, further enhancing the valve's performance and longevity in challenging environments.
Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

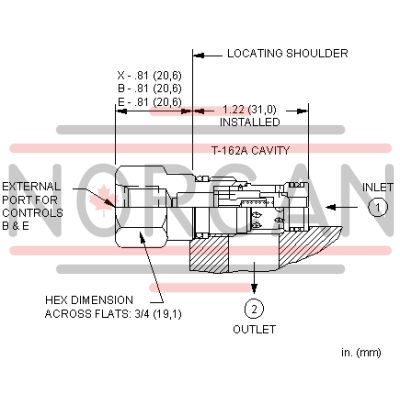

| Cavity | T-162A |
| Series | 0 |
| Capacity | 10 gpm40 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
