SUN HYDRAULICS
CXBGXAV
$28.40 USD
- SUN HYDRAULICS
- Material:CXBGXAV
- Model:CXBG-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXBGXAV (CXBGXAV) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model features a flush mount design, allowing for seamless integration with manifold surfaces, which is ideal for systems where space conservation is critical. The CXBGXAV supports a maximum operating pressure of 5000 psi (350 bar) and accommodates flow rates up to 10 gpm (40 L/min), making it suitable for a broad range of hydraulic circuits. Engineered with Sun Hydraulics' floating style construction, the CXBGXAV minimizes the risk of internal parts binding, which can occur due to over-torquing during installation or variations in cavity/cartridge machining. This ensures consistent performance and longevity of the valve under rigorous conditions. The valve also boasts an exceptionally low leakage rate, less than 1 drop per minute (0.07 cc/min), which is crucial for maintaining system efficiency and reducing fluid loss. Installation specifications include an internal hex size of 5/16 in. (8 mm) and an installation torque range of 20 - 25 lbf\u00b7ft (27 - 33 Nm). The compact design results in a minimal weight of just 0.20 lb (0.10 kg), further enhancing its suitability for various applications where weight sensitivity is a factor. Additionally, the valve uses Viton seals (part number: 990162006) to ensure compatibility with a wide range of fluids and to provide superior chemical resistance. The CXBGXAV check valve is an essential component for any hydraulic system requiring dependable backflow prevention with minimal fluid leakage.
The Sun Hydraulics CXBGXAV (CXBGXAV) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model features a flush mount design, allowing for seamless integration with manifold surfaces, which is ideal for systems where space conservation is critical. The CXBGXAV supports a maximum operating pressure of 5000 psi (350 bar) and accommodates flow rates up to 10 gpm (40 L/min), making it suitable for a broad range of hydraulic circuits. Engineered with Sun Hydraulics' floating style construction, the CXBGXAV minimizes the risk of internal parts binding, which can occur due to over-torquing during installation or variations in cavity/cartridge machining. This ensures consistent performance and longevity of the valve under rigorous conditions. The valve also boasts an exceptionally low leakage rate, less than 1 drop per minute (0.07 cc/min), which is crucial for maintaining system efficiency and reducing fluid loss. Installation specifications include an internal hex size of 5/16 in. (8 mm) and an installation torque range of 20 - 25 lbf\u00b7ft (27 - 33 Nm). The compact design results in a minimal weight of just 0.20 lb (0.10 kg), further enhancing its suitability for various applications where weight sensitivity is a factor. Additionally, the valve uses Viton seals (part number: 990162006) to ensure compatibility with a wide range of fluids and to provide superior chemical resistance. The CXBGXAV check valve is an essential component for any hydraulic system requiring dependable backflow prevention with minimal fluid leakage.

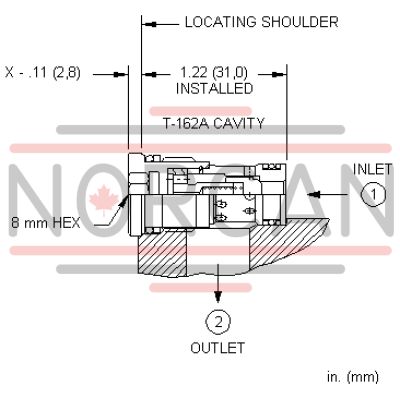

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Flush mount valves provide a small footprint. They can easily be mounted flush with the surface of the manifold.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 10 gpm40 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Internal Hex Size | 5/16 in.8 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
