SUN HYDRAULICS
CXBGXBV
$28.40 USD
- SUN HYDRAULICS
- Material:CXBGXBV
- Model:CXBG-XBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXBGXBV (CXBGXBV) is a high-performance check valve designed for hydraulic applications requiring reliable one-way flow and tight leakage control. This model supports a maximum operating pressure of 5000 psi (350 bar) and accommodates flows up to 10 gpm (40 L/min), making it suitable for a range of medium to high-pressure systems. The CXBGXBV features a T-16A cavity and is part of the Series 0, indicating specific design characteristics within Sun Hydraulics' product lineup. Notably, the CXBGXBV valve offers an exceptionally low maximum leakage rate of less than 1 drop per minute (0.07 cc/min), ensuring efficient operation with minimal fluid loss. This check valve utilizes Sun\u2019s floating style construction, which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining, enhancing its durability and reliability. The valve is designed for flush mounting, providing a compact installation footprint on the manifold surface. It is also compatible with two-port configurations within the same frame size, although users should be aware of potential differences in flow paths. For maintenance or repair needs, the CXBGXBV uses Viton seals (part number: 990162006) and requires an installation torque between 20 - 25 lbf ft (27 - 33 Nm). The unit itself weighs approximately 0.20 lb (0.10 kg), facilitating easy handling and integration into various hydraulic circuits without adding significant weight.
The Sun Hydraulics CXBGXBV (CXBGXBV) is a high-performance check valve designed for hydraulic applications requiring reliable one-way flow and tight leakage control. This model supports a maximum operating pressure of 5000 psi (350 bar) and accommodates flows up to 10 gpm (40 L/min), making it suitable for a range of medium to high-pressure systems. The CXBGXBV features a T-16A cavity and is part of the Series 0, indicating specific design characteristics within Sun Hydraulics' product lineup. Notably, the CXBGXBV valve offers an exceptionally low maximum leakage rate of less than 1 drop per minute (0.07 cc/min), ensuring efficient operation with minimal fluid loss. This check valve utilizes Sun\u2019s floating style construction, which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining, enhancing its durability and reliability. The valve is designed for flush mounting, providing a compact installation footprint on the manifold surface. It is also compatible with two-port configurations within the same frame size, although users should be aware of potential differences in flow paths. For maintenance or repair needs, the CXBGXBV uses Viton seals (part number: 990162006) and requires an installation torque between 20 - 25 lbf ft (27 - 33 Nm). The unit itself weighs approximately 0.20 lb (0.10 kg), facilitating easy handling and integration into various hydraulic circuits without adding significant weight.

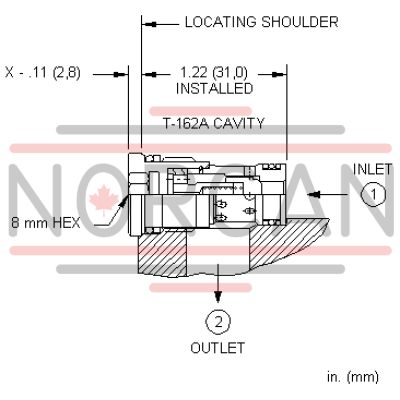

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Flush mount valves provide a small footprint. They can easily be mounted flush with the surface of the manifold.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 10 gpm40 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Internal Hex Size | 5/16 in.8 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
