SUN HYDRAULICS
CXBMXAN
$21.94 USD
- SUN HYDRAULICS
- Material:CXBMXAN
- Model:CXBM-XAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXBMXAN (CXBMXAN) is a high-performance, two-port, free flow, nose-to-side check valve designed for hydraulic applications requiring reliable one-way flow and tight shut-off in the reverse direction. This valve is specifically built to fit into T162DP cavities and supports a maximum operating pressure of 5000 psi (350 bar), making it suitable for high-pressure systems. The CXBMXAN model permits a flow capacity of up to 10 gpm (40 L/min) and ensures minimal leakage, with a maximum rate of less than one drop per minute (0.07 cc/min). Engineered for durability and efficiency, the CXBMXAN features Sun Hydraulics' floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. This design enhances the valve\u2019s operational reliability and lifespan. It also utilizes EPDM seals specifically for compatibility with phosphate ester fluids; however, these seals must not be exposed to petroleum-based fluids as they can cause damage. The valve's compact form factor weighs approximately 0.20 lb (0.10 kg) and requires an installation torque of 20 - 25 lbf ft (27 - 33 Nm). Its internal hex size is 5/16 in. (8 mm), making it easy to install in confined spaces within manifolds or actuators. The CXBMXAN is an ideal solution for applications where space is at a premium but performance cannot be compromised, offering precise control over fluid flow in advanced hydraulic systems.
The Sun Hydraulics CXBMXAN (CXBMXAN) is a high-performance, two-port, free flow, nose-to-side check valve designed for hydraulic applications requiring reliable one-way flow and tight shut-off in the reverse direction. This valve is specifically built to fit into T162DP cavities and supports a maximum operating pressure of 5000 psi (350 bar), making it suitable for high-pressure systems. The CXBMXAN model permits a flow capacity of up to 10 gpm (40 L/min) and ensures minimal leakage, with a maximum rate of less than one drop per minute (0.07 cc/min). Engineered for durability and efficiency, the CXBMXAN features Sun Hydraulics' floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. This design enhances the valve\u2019s operational reliability and lifespan. It also utilizes EPDM seals specifically for compatibility with phosphate ester fluids; however, these seals must not be exposed to petroleum-based fluids as they can cause damage. The valve's compact form factor weighs approximately 0.20 lb (0.10 kg) and requires an installation torque of 20 - 25 lbf ft (27 - 33 Nm). Its internal hex size is 5/16 in. (8 mm), making it easy to install in confined spaces within manifolds or actuators. The CXBMXAN is an ideal solution for applications where space is at a premium but performance cannot be compromised, offering precise control over fluid flow in advanced hydraulic systems.
Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.

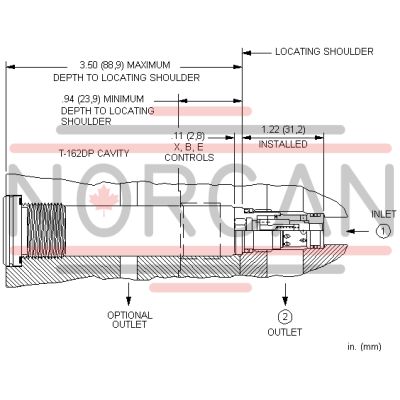

- This valve is what we call an Insert style. It is meant to be buried in a manifold or actuator. The cavity drawing for the T-162DP cavity contains a lot of detailed information and should be studied closely when applying this valve.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162DP |
| Series | 0 |
| Capacity | 10 gpm40 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Internal Hex Size | 5/16 in.8 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
