SUN HYDRAULICS
CXBMXAV
$28.40 USD
- SUN HYDRAULICS
- Material:CXBMXAV
- Model:CXBM-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXBMXAV (CXBMXAV) is a high-performance hydraulic check valve designed for precise fluid control in various applications. This model is an insert-style valve, intended to be integrated seamlessly within a manifold or actuator, ensuring a compact and efficient setup. The valve operates by allowing free flow from the inlet port 1 to the outlet port 2 while blocking flow in the reverse direction, making it an essential component for one-way fluid operation systems. With its specification to fit the T162DP cavity, this valve requires careful consideration of detailed cavity drawings during application to ensure optimal performance. It shares the same cavity with other two-port check valves of the same frame size but may have opposite flow paths, highlighting the need for attention during installation and system design. The CXBMXAV is engineered to handle a maximum operating pressure of 5000 psi (350 bar) at both ports and boasts an extremely low leakage rate, less than 1 drop per minute (0.07 cc/min), which translates to enhanced system reliability and reduced fluid loss. The maximum capacity of this valve is 10 gpm (40 L/min), suitable for a variety of medium-scale hydraulic tasks. Constructed with Sun's floating style design, the CXBMXAV minimizes internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. This feature ensures consistent performance and longevity of the valve even under strenuous conditions. For use with specific fluids, cartridges configured with EPDM seals are recommended solely for systems utilizing phosphate ester fluids; exposure to petroleum-based fluids can damage these seals. This model's internal hex size measures 5/16 in. (8 mm), and it requires an installation torque between 20 - 25 lbf\u00b7ft (27 - 33 Nm). Weighing just .20 lb (0.10 kg), it offers a lightweight yet robust solution for effective fluid control in hydraulic systems.
The Sun Hydraulics CXBMXAV (CXBMXAV) is a high-performance hydraulic check valve designed for precise fluid control in various applications. This model is an insert-style valve, intended to be integrated seamlessly within a manifold or actuator, ensuring a compact and efficient setup. The valve operates by allowing free flow from the inlet port 1 to the outlet port 2 while blocking flow in the reverse direction, making it an essential component for one-way fluid operation systems. With its specification to fit the T162DP cavity, this valve requires careful consideration of detailed cavity drawings during application to ensure optimal performance. It shares the same cavity with other two-port check valves of the same frame size but may have opposite flow paths, highlighting the need for attention during installation and system design. The CXBMXAV is engineered to handle a maximum operating pressure of 5000 psi (350 bar) at both ports and boasts an extremely low leakage rate, less than 1 drop per minute (0.07 cc/min), which translates to enhanced system reliability and reduced fluid loss. The maximum capacity of this valve is 10 gpm (40 L/min), suitable for a variety of medium-scale hydraulic tasks. Constructed with Sun's floating style design, the CXBMXAV minimizes internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. This feature ensures consistent performance and longevity of the valve even under strenuous conditions. For use with specific fluids, cartridges configured with EPDM seals are recommended solely for systems utilizing phosphate ester fluids; exposure to petroleum-based fluids can damage these seals. This model's internal hex size measures 5/16 in. (8 mm), and it requires an installation torque between 20 - 25 lbf\u00b7ft (27 - 33 Nm). Weighing just .20 lb (0.10 kg), it offers a lightweight yet robust solution for effective fluid control in hydraulic systems.
Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.

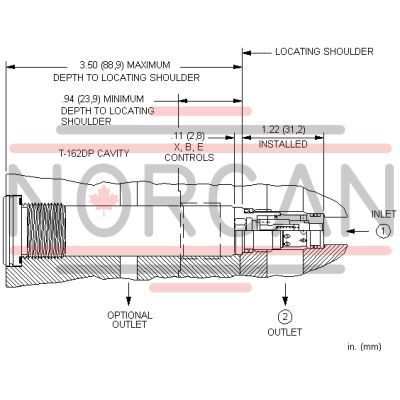

- This valve is what we call an Insert style. It is meant to be buried in a manifold or actuator. The cavity drawing for the T-162DP cavity contains a lot of detailed information and should be studied closely when applying this valve.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162DP |
| Series | 0 |
| Capacity | 10 gpm40 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Internal Hex Size | 5/16 in.8 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
