SUN HYDRAULICS
CXBMXCN
$21.94 USD
- SUN HYDRAULICS
- Material:CXBMXCN
- Model:CXBM-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXBMXCN (CXBMXCN) is a high-performance hydraulic check valve designed for precision fluid control in various hydraulic systems. This model is an insert-style valve, specifically crafted to be integrated seamlessly into manifolds or actuators, ensuring a compact and efficient assembly. It features a free flow from inlet port 1 to outlet port 2 while blocking flow in the reverse direction, making it ideal for applications requiring unidirectional flow control. The CXBMXCN operates under a maximum pressure of 5000 psi (350 bar) at both ports and is capable of handling a flow capacity of up to 10 gpm (40 L/min). Its design includes Sun's floating style construction which reduces the risk of internal parts binding due to installation torque or variations in cavity/cartridge machining, thereby enhancing reliability and performance longevity. The valve exhibits exceptionally low leakage rates, less than 1 drop per minute (0.07 cc/min), which is crucial for maintaining system efficiency and preventing fluid loss. For environments using phosphate ester fluids, cartridges configured with EPDM seals are recommended; however, these should not be exposed to petroleum-based fluids as they can degrade the seals. The CXBMXCN requires an installation torque between 20 - 25 lbf.ft (27 - 33 Nm) and has an internal hex size of 5/16 in. (8 mm). Weighing only about 0.20 lb (0.10 kg), this model combines lightweight characteristics with robust performance specifications tailored for demanding hydraulic applications.
The Sun Hydraulics CXBMXCN (CXBMXCN) is a high-performance hydraulic check valve designed for precision fluid control in various hydraulic systems. This model is an insert-style valve, specifically crafted to be integrated seamlessly into manifolds or actuators, ensuring a compact and efficient assembly. It features a free flow from inlet port 1 to outlet port 2 while blocking flow in the reverse direction, making it ideal for applications requiring unidirectional flow control. The CXBMXCN operates under a maximum pressure of 5000 psi (350 bar) at both ports and is capable of handling a flow capacity of up to 10 gpm (40 L/min). Its design includes Sun's floating style construction which reduces the risk of internal parts binding due to installation torque or variations in cavity/cartridge machining, thereby enhancing reliability and performance longevity. The valve exhibits exceptionally low leakage rates, less than 1 drop per minute (0.07 cc/min), which is crucial for maintaining system efficiency and preventing fluid loss. For environments using phosphate ester fluids, cartridges configured with EPDM seals are recommended; however, these should not be exposed to petroleum-based fluids as they can degrade the seals. The CXBMXCN requires an installation torque between 20 - 25 lbf.ft (27 - 33 Nm) and has an internal hex size of 5/16 in. (8 mm). Weighing only about 0.20 lb (0.10 kg), this model combines lightweight characteristics with robust performance specifications tailored for demanding hydraulic applications.
Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.

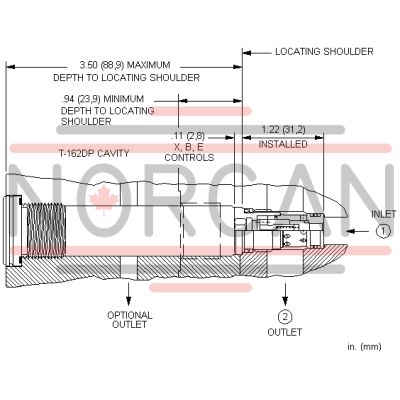

- This valve is what we call an Insert style. It is meant to be buried in a manifold or actuator. The cavity drawing for the T-162DP cavity contains a lot of detailed information and should be studied closely when applying this valve.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162DP |
| Series | 0 |
| Capacity | 10 gpm40 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Internal Hex Size | 5/16 in.8 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
