CXBMXCV
$28.40 USD
- SUN HYDRAULICS
- Material:CXBMXCV
- Model:CXBM-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXBMXCV (CXBMXCV) is a high-performance, free-flow, nose-to-side check valve designed for precise hydraulic control. This insert-style valve is engineered to be integrated into manifolds or actuators, utilizing the T162DP cavity which requires careful study for optimal application due to its detailed design specifications. The CXBMXCV is tailored for systems requiring robust control with its capacity to handle a maximum operating pressure of 5000 psi (350 bar) at both ports 1 and 2, and a flow capacity up to 10 gpm (40 L/min). Featuring extremely low leakage rates, the valve demonstrates maximum efficiency with less than one drop per minute (0.07 cc/min) leakage, ensuring minimal fluid loss and enhanced system reliability. The internal construction of the valve benefits from Sun's floating style design which reduces the risk of internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. The CXBMXCV is compatible with EPDM seals specifically configured for use with phosphate ester fluids; however, it is crucial to avoid exposure to petroleum-based fluids as they can damage the seals. For installation, it requires a specific torque of 20 - 25 lbf-ft (27 - 33 Nm) and utilizes an internal hex size of 5/16 in. (8 mm). With its compact model weight of approximately 0.20 lb (0.10 kg), this valve is an ideal choice for systems where space and weight are critical factors. In summary, the Sun Hydraulics CXBMXCV check valve offers superior performance in hydraulic applications demanding high pressure handling, low leakage, and precise flow control within compact spaces.
The Sun Hydraulics CXBMXCV (CXBMXCV) is a high-performance, free-flow, nose-to-side check valve designed for precise hydraulic control. This insert-style valve is engineered to be integrated into manifolds or actuators, utilizing the T162DP cavity which requires careful study for optimal application due to its detailed design specifications. The CXBMXCV is tailored for systems requiring robust control with its capacity to handle a maximum operating pressure of 5000 psi (350 bar) at both ports 1 and 2, and a flow capacity up to 10 gpm (40 L/min). Featuring extremely low leakage rates, the valve demonstrates maximum efficiency with less than one drop per minute (0.07 cc/min) leakage, ensuring minimal fluid loss and enhanced system reliability. The internal construction of the valve benefits from Sun's floating style design which reduces the risk of internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. The CXBMXCV is compatible with EPDM seals specifically configured for use with phosphate ester fluids; however, it is crucial to avoid exposure to petroleum-based fluids as they can damage the seals. For installation, it requires a specific torque of 20 - 25 lbf-ft (27 - 33 Nm) and utilizes an internal hex size of 5/16 in. (8 mm). With its compact model weight of approximately 0.20 lb (0.10 kg), this valve is an ideal choice for systems where space and weight are critical factors. In summary, the Sun Hydraulics CXBMXCV check valve offers superior performance in hydraulic applications demanding high pressure handling, low leakage, and precise flow control within compact spaces.
Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.

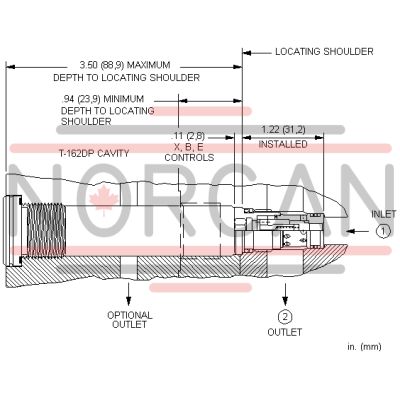

- This valve is what we call an Insert style. It is meant to be buried in a manifold or actuator. The cavity drawing for the T-162DP cavity contains a lot of detailed information and should be studied closely when applying this valve.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162DP |
| Series | 0 |
| Capacity | 10 gpm40 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Internal Hex Size | 5/16 in.8 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
