SUN HYDRAULICS
CXCBXDN
$53.31 USD
- SUN HYDRAULICS
- Material:CXCBXDN
- Model:CXCB-XDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCBXDN (CXCBXDN) is a freeflow, sidetonose check valve designed to control hydraulic flow with precision and reliability. The valve allows unimpeded flow from inlet port 2 to outlet port 1 while blocking flow in the reverse direction, making it an essential component for medium pressure systems that may contain dirty fluids. It is especially well-suited for applications where manifold drillings are incorrect as these valves can serve as circuit savers in existing systems. Featuring a Delrin seat, the CXCBXDN is tailored for environments not characterized by high flows or temperatures, ensuring durability and functionality under varied conditions. This model supports a maximum operating pressure of 3000 psi (210 bar) and has a capacity of 15 gpm (60 L/min), which is approximately 30% less than models with a nose-to-side flow path due to its sidetonose configuration. Moreover, the CXCBXDN incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue resulting from excessive installation torque or cavity/cartridge machining variations. The valve's design ensures extremely low leakage rates, less than one drop per minute (0.07 cc/min), contributing to efficient system performance with minimal fluid loss. The check valve's compact form factor includes a hex size of 7/8 in. (22.2 mm) and weighs only 0.20 lb (0.10 kg). Installation requires a torque between 30 - 35 lbf-ft (41 - 47 Nm). For maintenance or replacement needs, it utilizes Viton seals available through kit number: 990010006. This model's robust construction and precise leakage control make it an optimal choice for ensuring reliable operation in hydraulic circuits prone to contamination and misalignment issues.
The Sun Hydraulics CXCBXDN (CXCBXDN) is a freeflow, sidetonose check valve designed to control hydraulic flow with precision and reliability. The valve allows unimpeded flow from inlet port 2 to outlet port 1 while blocking flow in the reverse direction, making it an essential component for medium pressure systems that may contain dirty fluids. It is especially well-suited for applications where manifold drillings are incorrect as these valves can serve as circuit savers in existing systems. Featuring a Delrin seat, the CXCBXDN is tailored for environments not characterized by high flows or temperatures, ensuring durability and functionality under varied conditions. This model supports a maximum operating pressure of 3000 psi (210 bar) and has a capacity of 15 gpm (60 L/min), which is approximately 30% less than models with a nose-to-side flow path due to its sidetonose configuration. Moreover, the CXCBXDN incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue resulting from excessive installation torque or cavity/cartridge machining variations. The valve's design ensures extremely low leakage rates, less than one drop per minute (0.07 cc/min), contributing to efficient system performance with minimal fluid loss. The check valve's compact form factor includes a hex size of 7/8 in. (22.2 mm) and weighs only 0.20 lb (0.10 kg). Installation requires a torque between 30 - 35 lbf-ft (41 - 47 Nm). For maintenance or replacement needs, it utilizes Viton seals available through kit number: 990010006. This model's robust construction and precise leakage control make it an optimal choice for ensuring reliable operation in hydraulic circuits prone to contamination and misalignment issues.
Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

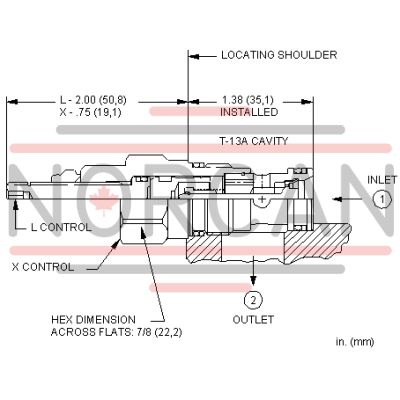

| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
