SUN HYDRAULICS
CXCBXFN
$53.31 USD
- SUN HYDRAULICS
- Material:CXCBXFN
- Model:CXCB-XFN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCBXFN (CXCBXFN) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a freeflow, side-to-nose configuration which allows free flow from inlet port 2 to outlet port 1 while blocking flow in the opposite direction, making it an essential component for systems where reverse flow must be prevented. The valve's Delrin seat makes it suitable for medium pressure applications where the system may contain some degree of contamination. With a maximum operating pressure of 3000 psi (210 bar) and a flow capacity of 15 gpm (60 L/min), the CXCBXFN is equipped to handle substantial hydraulic loads. Furthermore, its extremely low leakage rate\u2014less than one drop per minute (0.07 cc/min)\u2014ensures efficient operation and minimal fluid loss, critical in maintaining system integrity and performance. The check valve incorporates Sun Hydraulics' floating style construction which helps minimize internal part binding due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the durability and reliability of the valve under varied installation conditions. Designed to fit within a T-13A cavity and requiring an installation torque between 30 - 35 lbf ft (41 - 47 Nm), this model offers ease of installation with standard tooling sizes. Weighing just 0.20 lb (0.10 kg), the CXCBXFN is lightweight yet robust, making it an ideal choice for mobile and industrial applications where space and weight are considerations but performance cannot be compromised. Its compatibility with Viton seals ensures resistance against high temperatures and chemical degradation, further enhancing its utility in challenging environments.
The Sun Hydraulics CXCBXFN (CXCBXFN) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a freeflow, side-to-nose configuration which allows free flow from inlet port 2 to outlet port 1 while blocking flow in the opposite direction, making it an essential component for systems where reverse flow must be prevented. The valve's Delrin seat makes it suitable for medium pressure applications where the system may contain some degree of contamination. With a maximum operating pressure of 3000 psi (210 bar) and a flow capacity of 15 gpm (60 L/min), the CXCBXFN is equipped to handle substantial hydraulic loads. Furthermore, its extremely low leakage rate\u2014less than one drop per minute (0.07 cc/min)\u2014ensures efficient operation and minimal fluid loss, critical in maintaining system integrity and performance. The check valve incorporates Sun Hydraulics' floating style construction which helps minimize internal part binding due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the durability and reliability of the valve under varied installation conditions. Designed to fit within a T-13A cavity and requiring an installation torque between 30 - 35 lbf ft (41 - 47 Nm), this model offers ease of installation with standard tooling sizes. Weighing just 0.20 lb (0.10 kg), the CXCBXFN is lightweight yet robust, making it an ideal choice for mobile and industrial applications where space and weight are considerations but performance cannot be compromised. Its compatibility with Viton seals ensures resistance against high temperatures and chemical degradation, further enhancing its utility in challenging environments.
Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

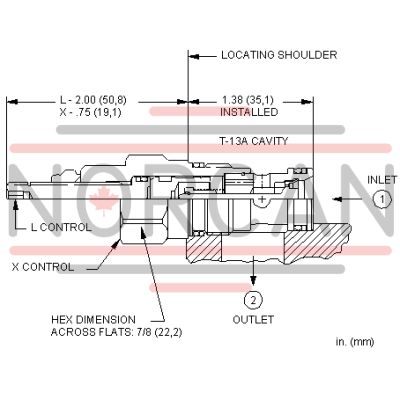

| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
