SUN HYDRAULICS
CXCBXZN
$55.30 USD
- SUN HYDRAULICS
- Material:CXCBXZN
- Model:CXCB-XZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

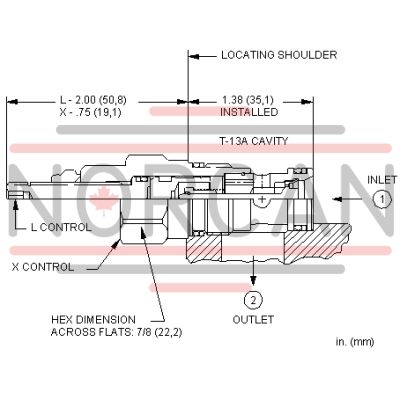

The Sun Hydraulics CXCBXZN (CXCBXZN) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a free-flow design from sidetonose, allowing fluid to move freely from inlet port 2 to outlet port 1 while preventing backflow in the opposite direction. It boasts a Delrin seat, making it suitable for applications involving dirty and medium-pressure systems that do not experience high flows or temperatures. The CXCBXZN valve is engineered with a T13A cavity and belongs to Series 1, ensuring compatibility with standard hydraulic setups within its specifications. It supports a maximum flow capacity of 15 gpm (60 L/min) and can handle pressures up to 3000 psi (210 bar). One of its standout features is the extremely low maximum leakage rate of less than one drop per minute (0.07 cc/min), which underscores its efficiency and reliability in maintaining system integrity. Additionally, this model incorporates Sun\u2019s floating style construction which minimizes the risk of internal parts binding\u2014a common issue caused by over-torquing during installation or variations in cavity/cartridge machining. The valve's hex size is 7/8 in. (22.2 mm), and it requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). Weighing just 0.20 lb (0.10 kg), the CXCBXZN is both compact and lightweight, facilitating easy integration into existing hydraulic circuits without significant modifications. Overall, the Sun Hydraulics CXCBXZN check valve is an ideal solution for enhancing circuit performance where incorrect manifold drillings are present, offering both robust construction and precise leakage control to maintain system efficiency and safety.
The Sun Hydraulics CXCBXZN (CXCBXZN) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a free-flow design from sidetonose, allowing fluid to move freely from inlet port 2 to outlet port 1 while preventing backflow in the opposite direction. It boasts a Delrin seat, making it suitable for applications involving dirty and medium-pressure systems that do not experience high flows or temperatures. The CXCBXZN valve is engineered with a T13A cavity and belongs to Series 1, ensuring compatibility with standard hydraulic setups within its specifications. It supports a maximum flow capacity of 15 gpm (60 L/min) and can handle pressures up to 3000 psi (210 bar). One of its standout features is the extremely low maximum leakage rate of less than one drop per minute (0.07 cc/min), which underscores its efficiency and reliability in maintaining system integrity. Additionally, this model incorporates Sun\u2019s floating style construction which minimizes the risk of internal parts binding\u2014a common issue caused by over-torquing during installation or variations in cavity/cartridge machining. The valve's hex size is 7/8 in. (22.2 mm), and it requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). Weighing just 0.20 lb (0.10 kg), the CXCBXZN is both compact and lightweight, facilitating easy integration into existing hydraulic circuits without significant modifications. Overall, the Sun Hydraulics CXCBXZN check valve is an ideal solution for enhancing circuit performance where incorrect manifold drillings are present, offering both robust construction and precise leakage control to maintain system efficiency and safety.
Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
