SUN HYDRAULICS
CXCDLBN
$35.74 USD
- SUN HYDRAULICS
- Material:CXCDLBN
- Model:CXCD-LBN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCDLBN (CXCDLBN) is a high-performance two-port check valve designed for hydraulic systems requiring reliable, one-way flow control. These valves allow free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction, making them essential for systems where reverse flow could cause damage or inefficiency. The CXCDLBN model is particularly useful in correcting manifold drilling inaccuracies in existing circuits, acting as a circuit saver by accommodating about 30% less capacity compared to models with a nose-to-side port configuration. This model is engineered to handle maximum operating pressures up to 5000 psi (350 bar) at both ports and maintains an extremely low leakage rate of less than 1 drop per minute (0.07 cc/min). The valve's design incorporates Sun's floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This feature ensures consistent performance and longevity even under stringent conditions. The CXCDLBN has a flow capacity of up to 15 gpm (60 L/min), and it fits into a T13A cavity with a Series 1 compatibility. Its robust construction includes vital specifications such as a valve hex size of 7/8 inches (22.2 mm) and an installation torque range of 30 - 35 lbf\u00b7ft (41 - 47 Nm). Weighing only about .20 lb (0.10 kg), this compact valve is easy to install and maintain, supported by Viton seal kits for enhanced durability against harsh fluids and environmental conditions. This model stands out for its reliability and efficiency in hydraulic system checks, making it an indispensable component for various application requirements.
The Sun Hydraulics CXCDLBN (CXCDLBN) is a high-performance two-port check valve designed for hydraulic systems requiring reliable, one-way flow control. These valves allow free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction, making them essential for systems where reverse flow could cause damage or inefficiency. The CXCDLBN model is particularly useful in correcting manifold drilling inaccuracies in existing circuits, acting as a circuit saver by accommodating about 30% less capacity compared to models with a nose-to-side port configuration. This model is engineered to handle maximum operating pressures up to 5000 psi (350 bar) at both ports and maintains an extremely low leakage rate of less than 1 drop per minute (0.07 cc/min). The valve's design incorporates Sun's floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This feature ensures consistent performance and longevity even under stringent conditions. The CXCDLBN has a flow capacity of up to 15 gpm (60 L/min), and it fits into a T13A cavity with a Series 1 compatibility. Its robust construction includes vital specifications such as a valve hex size of 7/8 inches (22.2 mm) and an installation torque range of 30 - 35 lbf\u00b7ft (41 - 47 Nm). Weighing only about .20 lb (0.10 kg), this compact valve is easy to install and maintain, supported by Viton seal kits for enhanced durability against harsh fluids and environmental conditions. This model stands out for its reliability and efficiency in hydraulic system checks, making it an indispensable component for various application requirements.

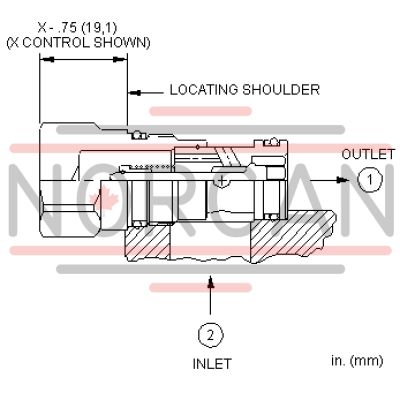

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
