SUN HYDRAULICS
CXCDLDN
$35.74 USD
- SUN HYDRAULICS
- Material:CXCDLDN
- Model:CXCD-LDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCDLDN (CXCDLDN) is a high-performance hydraulic check valve designed for precision fluid control in various hydraulic systems. This model, identified by its material number CXCDLDN, is part of Sun Hydraulics' reliable line of check valves that offer robust functionality in a compact design. The CXCDLDN valve operates as a free flow, side-to-nose check valve, allowing fluid to flow freely from the inlet port 2 to the outlet port 1 while blocking flow in the reverse direction. This feature makes it particularly useful for applications requiring one-way flow and where backflow prevention is critical. The valve's specifications include a maximum operating pressure of 5000 psi (350 bar) and a capacity of up to 15 gpm (60 L/min), making it suitable for high-pressure systems. It also boasts an extremely low leakage rate, with maximum leakage less than 1 drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss. The CXCDLDN utilizes Sun\u2019s floating style construction which helps minimize internal parts binding\u2014a common issue in valves due to excessive installation torque or variations in cavity/cartridge machining. With its T13A cavity and Series 1 compatibility, the CXCDLDN is versatile for retrofitting or upgrading existing hydraulic circuits, especially where manifold drilling inaccuracies exist. Its hex size for installation is 7/8 in (22.2 mm), and it requires an installation torque between 30 \u2013 35 lbf ft (41 \u2013 47 Nm). Weighing only approximately 0.20 lb (0.10 kg), this model promotes ease of handling and installation without compromising durability and performance. The use of Viton seals ensures compatibility with a range of hydraulic fluids and enhances the valve's operational longevity under various environmental conditions.
The Sun Hydraulics CXCDLDN (CXCDLDN) is a high-performance hydraulic check valve designed for precision fluid control in various hydraulic systems. This model, identified by its material number CXCDLDN, is part of Sun Hydraulics' reliable line of check valves that offer robust functionality in a compact design. The CXCDLDN valve operates as a free flow, side-to-nose check valve, allowing fluid to flow freely from the inlet port 2 to the outlet port 1 while blocking flow in the reverse direction. This feature makes it particularly useful for applications requiring one-way flow and where backflow prevention is critical. The valve's specifications include a maximum operating pressure of 5000 psi (350 bar) and a capacity of up to 15 gpm (60 L/min), making it suitable for high-pressure systems. It also boasts an extremely low leakage rate, with maximum leakage less than 1 drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss. The CXCDLDN utilizes Sun\u2019s floating style construction which helps minimize internal parts binding\u2014a common issue in valves due to excessive installation torque or variations in cavity/cartridge machining. With its T13A cavity and Series 1 compatibility, the CXCDLDN is versatile for retrofitting or upgrading existing hydraulic circuits, especially where manifold drilling inaccuracies exist. Its hex size for installation is 7/8 in (22.2 mm), and it requires an installation torque between 30 \u2013 35 lbf ft (41 \u2013 47 Nm). Weighing only approximately 0.20 lb (0.10 kg), this model promotes ease of handling and installation without compromising durability and performance. The use of Viton seals ensures compatibility with a range of hydraulic fluids and enhances the valve's operational longevity under various environmental conditions.

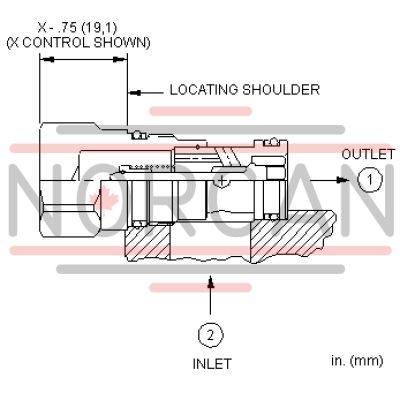

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
