SUN HYDRAULICS
CXCDLDV
$42.20 USD
- SUN HYDRAULICS
- Material:CXCDLDV
- Model:CXCD-LDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCDLDV (CXCDLDV) is a high-performance hydraulic check valve designed for efficient fluid control in hydraulic systems. This model, housed within a T13A cavity and part of the Series 1, offers a flow capacity of up to 15 gallons per minute (60 liters per minute) and can handle maximum operating pressures up to 5000 psi (350 bar). The CXCDLDV features a unique freeflow, side-to-nose configuration that supports free flow from inlet port 2 to outlet port 1 while blocking reverse flow, making it suitable for applications where manifold drillings may be incorrect or where circuit modifications are needed. This two-port check valve is noted for its exceptional sealing capabilities, with a maximum leakage rate of less than one drop per minute (0.07 cc/min), ensuring minimal fluid loss and increased efficiency in operation. The valve's construction includes Sun\u2019s floating style design which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design feature enhances the valve's reliability and longevity in demanding operational conditions. With a compact model weight of just 0.20 pounds (0.10 kg), the CXCDLDV is easy to install, requiring an installation torque between 30-35 lbf ft (41-47 Nm). It also features a hex size of 7/8 inches (22.2 mm) for straightforward integration into existing systems. The valve uses Viton seals for high temperature and chemical resistance, ensuring durable performance across various applications. Ideal for retrofitting or enhancing hydraulic circuits, the CXCDLDV provides an effective solution for controlling fluid flow in hydraulic systems while maintaining tight leak control and robust handling of high pressures.
The Sun Hydraulics CXCDLDV (CXCDLDV) is a high-performance hydraulic check valve designed for efficient fluid control in hydraulic systems. This model, housed within a T13A cavity and part of the Series 1, offers a flow capacity of up to 15 gallons per minute (60 liters per minute) and can handle maximum operating pressures up to 5000 psi (350 bar). The CXCDLDV features a unique freeflow, side-to-nose configuration that supports free flow from inlet port 2 to outlet port 1 while blocking reverse flow, making it suitable for applications where manifold drillings may be incorrect or where circuit modifications are needed. This two-port check valve is noted for its exceptional sealing capabilities, with a maximum leakage rate of less than one drop per minute (0.07 cc/min), ensuring minimal fluid loss and increased efficiency in operation. The valve's construction includes Sun\u2019s floating style design which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design feature enhances the valve's reliability and longevity in demanding operational conditions. With a compact model weight of just 0.20 pounds (0.10 kg), the CXCDLDV is easy to install, requiring an installation torque between 30-35 lbf ft (41-47 Nm). It also features a hex size of 7/8 inches (22.2 mm) for straightforward integration into existing systems. The valve uses Viton seals for high temperature and chemical resistance, ensuring durable performance across various applications. Ideal for retrofitting or enhancing hydraulic circuits, the CXCDLDV provides an effective solution for controlling fluid flow in hydraulic systems while maintaining tight leak control and robust handling of high pressures.

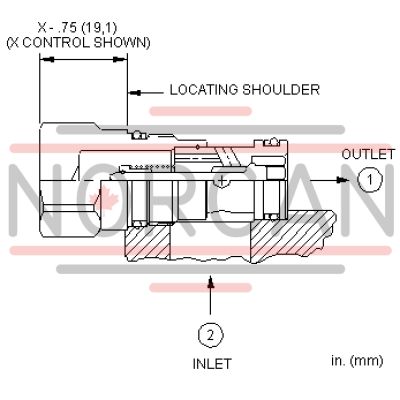

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
