SUN HYDRAULICS
CXCDLEN
$33.76 USD
- SUN HYDRAULICS
- Material:CXCDLEN
- Model:CXCD-LEN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCDLEN (CXCDLEN) is a high-performance check valve designed for hydraulic applications requiring reliable, one-directional flow. This model features a side-to-nose configuration, allowing free flow from inlet port 2 to outlet port 1 while blocking reverse flow, making it an ideal solution for correcting manifold drilling inaccuracies in existing circuits. With its capacity slightly reduced by approximately 30% compared to models with a nose-to-side flow path, the CXCDLEN still maintains robust performance specifications including a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of 15 gpm (60 L/min). This check valve is distinguished by its extremely low leakage rate, less than one drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss in critical applications. The incorporation of Sun's floating style construction minimizes the risk of internal parts binding, which can occur due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the reliability and longevity of the valve under various operational conditions. Designed with a T13A cavity and belonging to Series 1, this model is compact with a weight of just 0.20 lb (0.10 kg). It requires an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm) and utilizes Viton seals for enhanced chemical resistance and durability under high temperatures. The hex size for the valve is 7/8 in (22.2 mm), which facilitates easy installation and maintenance. Overall, the Sun Hydraulics CXCDLEN check valve stands out for its precision engineering aimed at maximizing efficiency and reliability in hydraulic systems where incorrect manifold configurations need correction without compromising system integrity or performance.
The Sun Hydraulics CXCDLEN (CXCDLEN) is a high-performance check valve designed for hydraulic applications requiring reliable, one-directional flow. This model features a side-to-nose configuration, allowing free flow from inlet port 2 to outlet port 1 while blocking reverse flow, making it an ideal solution for correcting manifold drilling inaccuracies in existing circuits. With its capacity slightly reduced by approximately 30% compared to models with a nose-to-side flow path, the CXCDLEN still maintains robust performance specifications including a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of 15 gpm (60 L/min). This check valve is distinguished by its extremely low leakage rate, less than one drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss in critical applications. The incorporation of Sun's floating style construction minimizes the risk of internal parts binding, which can occur due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the reliability and longevity of the valve under various operational conditions. Designed with a T13A cavity and belonging to Series 1, this model is compact with a weight of just 0.20 lb (0.10 kg). It requires an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm) and utilizes Viton seals for enhanced chemical resistance and durability under high temperatures. The hex size for the valve is 7/8 in (22.2 mm), which facilitates easy installation and maintenance. Overall, the Sun Hydraulics CXCDLEN check valve stands out for its precision engineering aimed at maximizing efficiency and reliability in hydraulic systems where incorrect manifold configurations need correction without compromising system integrity or performance.

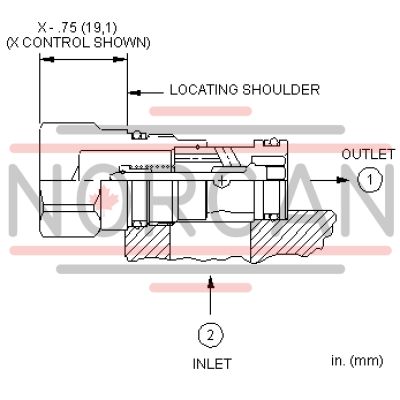

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
