SUN HYDRAULICS
CXCDLEV
$40.21 USD
- SUN HYDRAULICS
- Material:CXCDLEV
- Model:CXCD-LEV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCDLEV (CXCDLEV) is a robust two-port check valve designed for hydraulic applications requiring reliable, directional flow control. This model facilitates free flow from inlet port 2 to outlet port 1 while blocking flow in the reverse direction, making it an essential component for systems where precise fluid control is necessary. The CXCDLEV is particularly useful as a circuit saver in scenarios where manifold drillings may have been executed incorrectly, offering a practical solution without the need for extensive system modifications. The valve operates effectively up to a maximum pressure of 5000 psi (350 bar) at both ports and supports a flow capacity of 15 gpm (60 L/min). It features extremely low leakage rates, with maximum leakage specified at less than one drop per minute (0.07 cc/min), ensuring efficient and clean operation in critical environments. The construction of the CXCDLEV incorporates Sun's floating style design which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This model is engineered to fit within a T13A cavity and requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). The compact design results in a lightweight valve, weighing just 0.20 lb (0.10 kg), which facilitates easy installation and maintenance without compromising performance. The valve also comes with Viton seals as part of its cartridge configuration, enhancing its durability and performance under varying operational conditions. Ideal for applications demanding reliable check valve operations with minimal leakage and high-pressure endurance, the Sun Hydraulics CXCDLEV provides an effective solution tailored for advanced hydraulic systems.
The Sun Hydraulics CXCDLEV (CXCDLEV) is a robust two-port check valve designed for hydraulic applications requiring reliable, directional flow control. This model facilitates free flow from inlet port 2 to outlet port 1 while blocking flow in the reverse direction, making it an essential component for systems where precise fluid control is necessary. The CXCDLEV is particularly useful as a circuit saver in scenarios where manifold drillings may have been executed incorrectly, offering a practical solution without the need for extensive system modifications. The valve operates effectively up to a maximum pressure of 5000 psi (350 bar) at both ports and supports a flow capacity of 15 gpm (60 L/min). It features extremely low leakage rates, with maximum leakage specified at less than one drop per minute (0.07 cc/min), ensuring efficient and clean operation in critical environments. The construction of the CXCDLEV incorporates Sun's floating style design which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This model is engineered to fit within a T13A cavity and requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). The compact design results in a lightweight valve, weighing just 0.20 lb (0.10 kg), which facilitates easy installation and maintenance without compromising performance. The valve also comes with Viton seals as part of its cartridge configuration, enhancing its durability and performance under varying operational conditions. Ideal for applications demanding reliable check valve operations with minimal leakage and high-pressure endurance, the Sun Hydraulics CXCDLEV provides an effective solution tailored for advanced hydraulic systems.

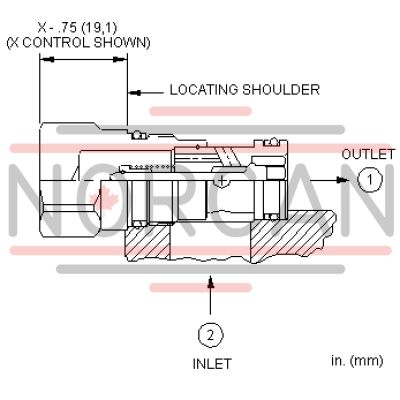

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
