SUN HYDRAULICS
CXCDLFN
$35.74 USD
- SUN HYDRAULICS
- Material:CXCDLFN
- Model:CXCD-LFN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCDLFN (CXCDLFN) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a free flow from the inlet port 2 to the outlet port 1 while blocking the reverse flow, ensuring efficient operation in various hydraulic applications. With its two-port configuration, the CXCDLFN is versatile but requires attention to flow direction during installation. This check valve is particularly useful as a circuit saver in systems where manifold drillings may have been incorrectly executed. It has a reduced capacity of approximately 30% less than models with a nose-to-side flow path, which should be considered when designing systems for optimal performance. The CXCDLFN boasts an extremely low leakage rate, with maximum leakage less than 1 drop per minute (0.07 cc/min), and can handle pressures up to 5000 psi (350 bar) at both ports. Constructed with Sun's floating style design, the CXCDLFN minimizes potential internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. This design feature enhances the durability and reliability of the valve under varying operational conditions. The valve fits within a T13A cavity and supports up to 15 gpm (60 L/min) capacity, making it suitable for medium-flow applications. Installation requires specific torque settings (30 - 35 lbf\u00b7ft or 41 - 47 Nm), and it has a compact model weight of just .20 lb (0.10 kg). For maintenance or repairs, Viton seal kits are available under part number 990010006.
The Sun Hydraulics CXCDLFN (CXCDLFN) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a free flow from the inlet port 2 to the outlet port 1 while blocking the reverse flow, ensuring efficient operation in various hydraulic applications. With its two-port configuration, the CXCDLFN is versatile but requires attention to flow direction during installation. This check valve is particularly useful as a circuit saver in systems where manifold drillings may have been incorrectly executed. It has a reduced capacity of approximately 30% less than models with a nose-to-side flow path, which should be considered when designing systems for optimal performance. The CXCDLFN boasts an extremely low leakage rate, with maximum leakage less than 1 drop per minute (0.07 cc/min), and can handle pressures up to 5000 psi (350 bar) at both ports. Constructed with Sun's floating style design, the CXCDLFN minimizes potential internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. This design feature enhances the durability and reliability of the valve under varying operational conditions. The valve fits within a T13A cavity and supports up to 15 gpm (60 L/min) capacity, making it suitable for medium-flow applications. Installation requires specific torque settings (30 - 35 lbf\u00b7ft or 41 - 47 Nm), and it has a compact model weight of just .20 lb (0.10 kg). For maintenance or repairs, Viton seal kits are available under part number 990010006.

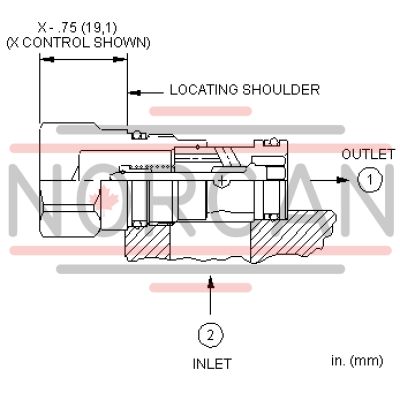

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
