SUN HYDRAULICS
CXCDLFV
$42.20 USD
- SUN HYDRAULICS
- Material:CXCDLFV
- Model:CXCD-LFV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCDLFV (CXCDLFV) is a high-performance, two-port check valve designed for hydraulic circuit applications where it is necessary to allow free flow from the inlet port (port 2) to the outlet port (port 1), while blocking flow in the reverse direction. This model is particularly useful as a circuit saver in systems where manifold drillings may have been executed incorrectly, offering an effective solution without needing extensive system redesigns. The CXCDLFV incorporates Sun's floating style construction which minimizes potential internal part binding caused by excessive installation torque or variations in cavity/cartridge machining. This design feature enhances the valve's reliability and longevity in demanding operational conditions. It operates efficiently under a maximum pressure of 5000 psi (350 bar) at both ports and has a capacity of 15 gpm (60 L/min), making it suitable for a broad range of fluid power applications. Notably, this model ensures extremely low leakage rates, with maximum leakage not exceeding 1 drop per minute (0.07 cc/min). Such precision in controlling fluid loss contributes significantly to maintaining system efficiency and reducing wastage. The valve's robust construction includes a Viton seal kit which provides excellent resistance against high temperatures and chemical corrosion, further ensuring operational integrity under varied environmental conditions. The CXCDLFV is compact, with a weight of only 0.20 lb (0.10 kg) and requires specific installation torque between 30 \u2013 35 lbf.ft (41 \u2013 47 Nm), making it easy to install and maintain within various hydraulic setups. Its technical specifications and performance characteristics make it an indispensable component within industrial hydraulic systems, ensuring reliable operation and contributing to overall system efficiency.
The Sun Hydraulics CXCDLFV (CXCDLFV) is a high-performance, two-port check valve designed for hydraulic circuit applications where it is necessary to allow free flow from the inlet port (port 2) to the outlet port (port 1), while blocking flow in the reverse direction. This model is particularly useful as a circuit saver in systems where manifold drillings may have been executed incorrectly, offering an effective solution without needing extensive system redesigns. The CXCDLFV incorporates Sun's floating style construction which minimizes potential internal part binding caused by excessive installation torque or variations in cavity/cartridge machining. This design feature enhances the valve's reliability and longevity in demanding operational conditions. It operates efficiently under a maximum pressure of 5000 psi (350 bar) at both ports and has a capacity of 15 gpm (60 L/min), making it suitable for a broad range of fluid power applications. Notably, this model ensures extremely low leakage rates, with maximum leakage not exceeding 1 drop per minute (0.07 cc/min). Such precision in controlling fluid loss contributes significantly to maintaining system efficiency and reducing wastage. The valve's robust construction includes a Viton seal kit which provides excellent resistance against high temperatures and chemical corrosion, further ensuring operational integrity under varied environmental conditions. The CXCDLFV is compact, with a weight of only 0.20 lb (0.10 kg) and requires specific installation torque between 30 \u2013 35 lbf.ft (41 \u2013 47 Nm), making it easy to install and maintain within various hydraulic setups. Its technical specifications and performance characteristics make it an indispensable component within industrial hydraulic systems, ensuring reliable operation and contributing to overall system efficiency.

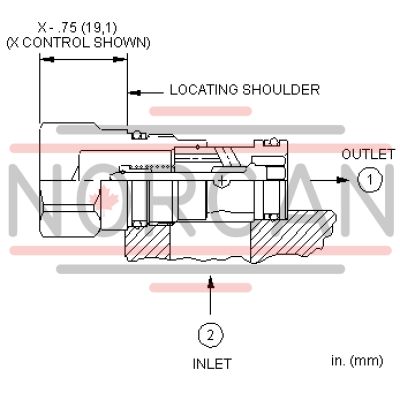

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
