CXCDXDN
$27.80 USD
- SUN HYDRAULICS
- Material:CXCDXDN
- Model:CXCD-XDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCDXDN (CXCDXDN) is a free flow, side-to-nose check valve designed for hydraulic applications where unidirectional flow is required. This two-port check valve allows free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction, making it an essential component in circuits requiring one-way flow. With a maximum operating pressure of 5000 psi (350 bar) and a capacity of 15 gpm (60 L/min), this model is crafted to handle demanding operational conditions. The CXCDXDN features Sun Hydraulics' innovative floating style construction which minimizes internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. This design enhances reliability and extends the service life of the valve. Additionally, it boasts an extremely low leakage rate, with a maximum of less than 1 drop per minute (0.07 cc/min), ensuring efficient operation with minimal fluid loss. This model is housed in a T13A cavity and requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). It has a compact hex size of 7/8 inch (22.2 mm) and weighs just 0.20 lb (0.10 kg), facilitating easy installation and maintenance without adding significant weight to the system. The valve uses Viton seals for enhanced performance under varying temperatures and chemical exposures. Ideal for retrofitting into existing circuits where manifold drillings may be incorrect, this check valve serves as a circuit saver by accommodating installation errors without compromising on efficiency or performance. Its robust construction coupled with precise engineering makes the Sun Hydraulics CXCDXDN an excellent choice for hydraulic systems requiring reliable unidirectional flow control.
The Sun Hydraulics CXCDXDN (CXCDXDN) is a free flow, side-to-nose check valve designed for hydraulic applications where unidirectional flow is required. This two-port check valve allows free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction, making it an essential component in circuits requiring one-way flow. With a maximum operating pressure of 5000 psi (350 bar) and a capacity of 15 gpm (60 L/min), this model is crafted to handle demanding operational conditions. The CXCDXDN features Sun Hydraulics' innovative floating style construction which minimizes internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. This design enhances reliability and extends the service life of the valve. Additionally, it boasts an extremely low leakage rate, with a maximum of less than 1 drop per minute (0.07 cc/min), ensuring efficient operation with minimal fluid loss. This model is housed in a T13A cavity and requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). It has a compact hex size of 7/8 inch (22.2 mm) and weighs just 0.20 lb (0.10 kg), facilitating easy installation and maintenance without adding significant weight to the system. The valve uses Viton seals for enhanced performance under varying temperatures and chemical exposures. Ideal for retrofitting into existing circuits where manifold drillings may be incorrect, this check valve serves as a circuit saver by accommodating installation errors without compromising on efficiency or performance. Its robust construction coupled with precise engineering makes the Sun Hydraulics CXCDXDN an excellent choice for hydraulic systems requiring reliable unidirectional flow control.

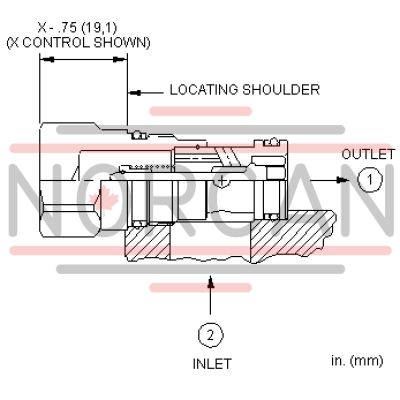

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
