SUN HYDRAULICS
CXCDXFN
$27.80 USD
- SUN HYDRAULICS
- Material:CXCDXFN
- Model:CXCD-XFN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCDXFN (CXCDXFN) is a high-performance sidetonose check valve designed for hydraulic applications requiring reliable unidirectional flow control. This model permits free flow from inlet port 2 to outlet port 1 while effectively blocking flow in the reverse direction, making it an essential component for systems where reverse flow could be detrimental. The CXCDXFN is especially useful as a circuit saver in scenarios where manifold drillings might be incorrect, offering a solution without the need for extensive system redesigns. With a maximum operating pressure of 5000 psi (350 bar) and a capacity of 15 gpm (60 L/min), this valve is suited for high-pressure environments. It features extremely low leakage rates, with less than one drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss. The valve's construction includes Sun's floating style design which minimizes internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. The CXCDXFN valve fits within a T13A cavity and requires an installation torque of 30-35 lbf\u00b7ft (41-47 Nm). It has a compact form factor, weighing only 0.20 lb (0.10 kg), which facilitates easy integration into various hydraulic systems without adding significant weight. The check valve also supports Viton seals through the kit number 990010006, enhancing its resistance to harsh fluids and environments. This model stands out for its robustness and reliability in maintaining unidirectional flow in critical hydraulic circuits, making it an ideal choice for designers looking to optimize system safety and efficiency.
The Sun Hydraulics CXCDXFN (CXCDXFN) is a high-performance sidetonose check valve designed for hydraulic applications requiring reliable unidirectional flow control. This model permits free flow from inlet port 2 to outlet port 1 while effectively blocking flow in the reverse direction, making it an essential component for systems where reverse flow could be detrimental. The CXCDXFN is especially useful as a circuit saver in scenarios where manifold drillings might be incorrect, offering a solution without the need for extensive system redesigns. With a maximum operating pressure of 5000 psi (350 bar) and a capacity of 15 gpm (60 L/min), this valve is suited for high-pressure environments. It features extremely low leakage rates, with less than one drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss. The valve's construction includes Sun's floating style design which minimizes internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. The CXCDXFN valve fits within a T13A cavity and requires an installation torque of 30-35 lbf\u00b7ft (41-47 Nm). It has a compact form factor, weighing only 0.20 lb (0.10 kg), which facilitates easy integration into various hydraulic systems without adding significant weight. The check valve also supports Viton seals through the kit number 990010006, enhancing its resistance to harsh fluids and environments. This model stands out for its robustness and reliability in maintaining unidirectional flow in critical hydraulic circuits, making it an ideal choice for designers looking to optimize system safety and efficiency.

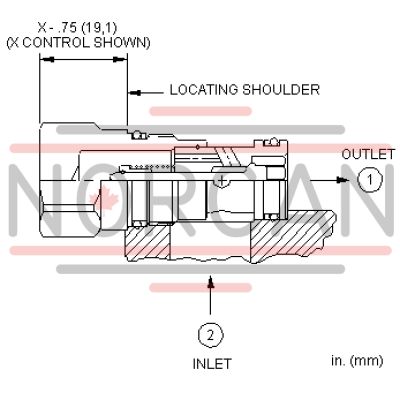

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
