SUN HYDRAULICS
CXCELAV
$53.81 USD
- SUN HYDRAULICS
- Material:CXCELAV
- Model:CXCE-LAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCELAV (CXCELAV) is a versatile and robust check valve designed for high-pressure hydraulic applications, capable of handling pressures up to 5000 psi (350 bar) at ports 1 and 2. This model is distinguished by its unique free-flow, side-to-nose cheater check valve functionality within a three-port cavity design, where port 3 of the cartridge is blocked off. This feature makes it particularly useful in circuits requiring a check valve in existing three-port cavities. The CXCELAV offers exceptionally low leakage rates, with a maximum leakage of less than one drop per minute (0.07 cc/min), ensuring efficient and reliable operation in critical applications. It shares the same cavity for a given frame size as two-port check valves but requires attention to the direction of flow paths which may be opposite. Constructed with Sun's floating style construction, the CXCELAV minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design enhances overall durability and performance reliability. The valve also features corrosion-resistant options suitable for harsh environments, noted by specific model code suffixes like AP or LH. Additional technical specifications include a flow capacity of 15 gpm (60 L/min), installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm), and a compact weight of .20 lb (0.10 kg). The valve's hex size is 7/8 in. (22.2 mm), making it compatible with standard tools for installation and maintenance. Overall, the Sun Hydraulics CXCELAV check valve is engineered for high performance in demanding hydraulic systems where space efficiency and leak prevention are critical.
The Sun Hydraulics CXCELAV (CXCELAV) is a versatile and robust check valve designed for high-pressure hydraulic applications, capable of handling pressures up to 5000 psi (350 bar) at ports 1 and 2. This model is distinguished by its unique free-flow, side-to-nose cheater check valve functionality within a three-port cavity design, where port 3 of the cartridge is blocked off. This feature makes it particularly useful in circuits requiring a check valve in existing three-port cavities. The CXCELAV offers exceptionally low leakage rates, with a maximum leakage of less than one drop per minute (0.07 cc/min), ensuring efficient and reliable operation in critical applications. It shares the same cavity for a given frame size as two-port check valves but requires attention to the direction of flow paths which may be opposite. Constructed with Sun's floating style construction, the CXCELAV minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design enhances overall durability and performance reliability. The valve also features corrosion-resistant options suitable for harsh environments, noted by specific model code suffixes like AP or LH. Additional technical specifications include a flow capacity of 15 gpm (60 L/min), installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm), and a compact weight of .20 lb (0.10 kg). The valve's hex size is 7/8 in. (22.2 mm), making it compatible with standard tools for installation and maintenance. Overall, the Sun Hydraulics CXCELAV check valve is engineered for high performance in demanding hydraulic systems where space efficiency and leak prevention are critical.

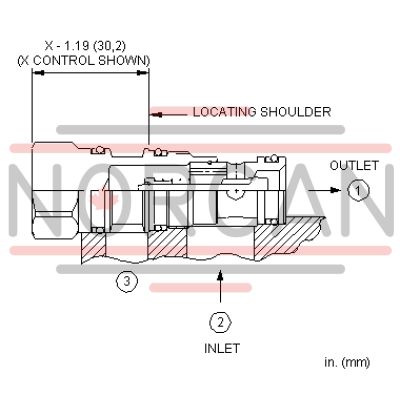

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
