SUN HYDRAULICS
CXCELDV
$52.82 USD
- SUN HYDRAULICS
- Material:CXCELDV
- Model:CXCE-LDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCELDV (CXCELDV) is designed as a versatile and efficient solution for hydraulic systems requiring reliable check valve functionality in a three-port cavity setup. This model features a unique freeflow, side-to-nose cheater check valve configuration that operates as a standard two-port check valve when the third port of the cartridge is blocked off. This capability makes it particularly suitable for applications where modification of existing three-port cavities to incorporate check valves is necessary, without needing to redesign the entire system. The CXCELDV valve supports a maximum operating pressure of 5000 psi (350 bar) at ports 1 and 2, ensuring robust performance even under high-pressure conditions. It also boasts an exceptionally low leakage rate, with maximum leakage less than one drop per minute (0.07 cc/min), which is critical for maintaining system efficiency and reducing fluid loss. The cartridge's corrosion-resistant design makes it ideal for use in environments where corrosion could be a concern. In terms of construction, the CXCELDV utilizes Sun\u2019s floating style construction which helps minimize internal parts binding that could occur due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the overall reliability and longevity of the valve by ensuring consistent operation over time. With a flow capacity rated at 15 gpm (60 L/min), this model is capable of handling significant fluid volumes, making it suitable for various industrial applications. Installation specifications include a hex size of 7/8 in. (22.2 mm) and an installation torque range between 30 - 35 lbf ft (41 - 47 Nm), with the entire unit weighing approximately 0.20 lb (0.10 kg). The use of Viton seals further enhances its performance by providing excellent resistance to high temperatures and chemicals, ensuring that the CXCELDV maintains its integrity and functional capabilities across diverse operating conditions.
The Sun Hydraulics CXCELDV (CXCELDV) is designed as a versatile and efficient solution for hydraulic systems requiring reliable check valve functionality in a three-port cavity setup. This model features a unique freeflow, side-to-nose cheater check valve configuration that operates as a standard two-port check valve when the third port of the cartridge is blocked off. This capability makes it particularly suitable for applications where modification of existing three-port cavities to incorporate check valves is necessary, without needing to redesign the entire system. The CXCELDV valve supports a maximum operating pressure of 5000 psi (350 bar) at ports 1 and 2, ensuring robust performance even under high-pressure conditions. It also boasts an exceptionally low leakage rate, with maximum leakage less than one drop per minute (0.07 cc/min), which is critical for maintaining system efficiency and reducing fluid loss. The cartridge's corrosion-resistant design makes it ideal for use in environments where corrosion could be a concern. In terms of construction, the CXCELDV utilizes Sun\u2019s floating style construction which helps minimize internal parts binding that could occur due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the overall reliability and longevity of the valve by ensuring consistent operation over time. With a flow capacity rated at 15 gpm (60 L/min), this model is capable of handling significant fluid volumes, making it suitable for various industrial applications. Installation specifications include a hex size of 7/8 in. (22.2 mm) and an installation torque range between 30 - 35 lbf ft (41 - 47 Nm), with the entire unit weighing approximately 0.20 lb (0.10 kg). The use of Viton seals further enhances its performance by providing excellent resistance to high temperatures and chemicals, ensuring that the CXCELDV maintains its integrity and functional capabilities across diverse operating conditions.

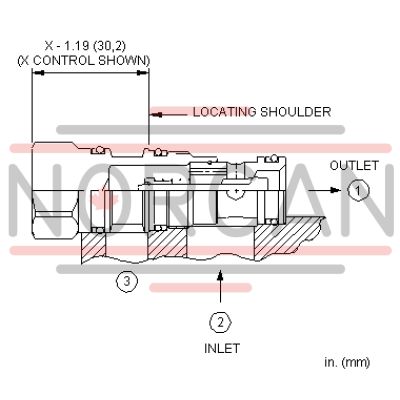

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
