SUN HYDRAULICS
CXCEXZN
$38.92 USD
- SUN HYDRAULICS
- Material:CXCEXZN
- Model:CXCE-XZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXCEXZN (CXCEXZN) is a versatile check valve designed for hydraulic applications requiring a reliable non-return function in a three-port cavity configuration, with the third port blocked off. This model is suitable for systems where installation space or existing cavity configurations necessitate the use of a two-port check valve in a three-port setup. The CXCEXZN operates effectively up to a maximum pressure of 5000 psi (350 bar) at ports 1 and 2, ensuring robust performance under high-pressure conditions. This valve exhibits exceptionally low leakage rates, less than one drop per minute (0.07 cc/min), which is crucial for maintaining system efficiency and preventing fluid loss. The unit's compatibility with corrosive environments is enhanced by its corrosion-resistant construction, although specific models suited for such conditions are indicated by different model code suffixes like AP or LH. Designed with Sun's floating style construction, the CXCEXZN minimizes the risk of internal parts binding, which can result from excessive installation torque or variations in cavity/cartridge machining. This feature contributes to the valve\u2019s durability and reliable operation over time. The physical specifications include a flow capacity of up to 15 gpm (60 L/min), making it suitable for moderate to high-flow applications. Installation requires a hex size of 7/8 in. (22.2 mm) and an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm). The entire unit weighs approximately 0.20 lb (0.10 kg), facilitating easy handling and integration into various hydraulic systems. Overall, the Sun Hydraulics CXCEXZN check valve is engineered to provide dependable one-way flow control in hydraulic circuits, particularly where space or existing configurations impose constraints on valve selection and placement.
The Sun Hydraulics CXCEXZN (CXCEXZN) is a versatile check valve designed for hydraulic applications requiring a reliable non-return function in a three-port cavity configuration, with the third port blocked off. This model is suitable for systems where installation space or existing cavity configurations necessitate the use of a two-port check valve in a three-port setup. The CXCEXZN operates effectively up to a maximum pressure of 5000 psi (350 bar) at ports 1 and 2, ensuring robust performance under high-pressure conditions. This valve exhibits exceptionally low leakage rates, less than one drop per minute (0.07 cc/min), which is crucial for maintaining system efficiency and preventing fluid loss. The unit's compatibility with corrosive environments is enhanced by its corrosion-resistant construction, although specific models suited for such conditions are indicated by different model code suffixes like AP or LH. Designed with Sun's floating style construction, the CXCEXZN minimizes the risk of internal parts binding, which can result from excessive installation torque or variations in cavity/cartridge machining. This feature contributes to the valve\u2019s durability and reliable operation over time. The physical specifications include a flow capacity of up to 15 gpm (60 L/min), making it suitable for moderate to high-flow applications. Installation requires a hex size of 7/8 in. (22.2 mm) and an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm). The entire unit weighs approximately 0.20 lb (0.10 kg), facilitating easy handling and integration into various hydraulic systems. Overall, the Sun Hydraulics CXCEXZN check valve is engineered to provide dependable one-way flow control in hydraulic circuits, particularly where space or existing configurations impose constraints on valve selection and placement.

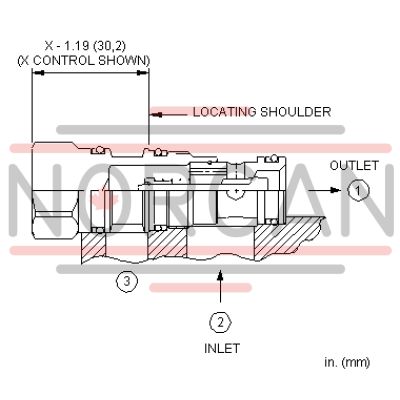

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
