SUN HYDRAULICS
CXDBXDV
$43.29 USD
- SUN HYDRAULICS
- Material:CXDBXDV
- Model:CXDB-XDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXDBXDV (CXDBXDV) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model features a free-flow, nose-to-side configuration that allows unrestricted flow from the inlet port 1 to the outlet port 2 while completely blocking flow in the reverse direction. The CXDBXDV is renowned for its extremely low leakage rate, which is less than 1 drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss. Constructed to handle pressures up to 5000 psi (350 bar) at both ports, this valve is suitable for high-pressure systems. It incorporates Sun's unique floating style construction which prevents internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining, enhancing its durability and reliability. The valve fits a T10A cavity and belongs to Series 1, with a capacity of handling up to 20 gpm (80 L/min). It requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm) and uses a Viton seal kit/cartridge for enhanced chemical resistance and thermal stability. With a valve hex size of 7/8 in. (22.2 mm), the CXDBXDV is designed for easy installation and maintenance in various hydraulic circuits. This check valve is an ideal choice for applications demanding robust performance with very low leakage, making it a critical component in maintaining system integrity and efficiency.
The Sun Hydraulics CXDBXDV (CXDBXDV) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model features a free-flow, nose-to-side configuration that allows unrestricted flow from the inlet port 1 to the outlet port 2 while completely blocking flow in the reverse direction. The CXDBXDV is renowned for its extremely low leakage rate, which is less than 1 drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss. Constructed to handle pressures up to 5000 psi (350 bar) at both ports, this valve is suitable for high-pressure systems. It incorporates Sun's unique floating style construction which prevents internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining, enhancing its durability and reliability. The valve fits a T10A cavity and belongs to Series 1, with a capacity of handling up to 20 gpm (80 L/min). It requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm) and uses a Viton seal kit/cartridge for enhanced chemical resistance and thermal stability. With a valve hex size of 7/8 in. (22.2 mm), the CXDBXDV is designed for easy installation and maintenance in various hydraulic circuits. This check valve is an ideal choice for applications demanding robust performance with very low leakage, making it a critical component in maintaining system integrity and efficiency.

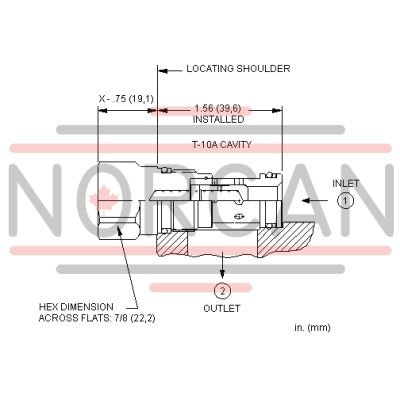

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-10A |
| Series | 1 |
| Capacity | 20 gpm80 L/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-010-006 |
