SUN HYDRAULICS
CXDBXZN
$38.82 USD
- SUN HYDRAULICS
- Material:CXDBXZN
- Model:CXDB-XZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXDBXZN (CXDBXZN) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This valve allows free flow from the inlet port 1 to the outlet port 2 while effectively blocking flow in the reverse direction, making it an essential component for systems where backflow could be problematic or where unidirectional flow is required. The CXDBXZN model stands out due to its exceptionally low leakage rate, which is less than one drop per minute (0.07 cc/min), ensuring minimal fluid loss and increased efficiency in hydraulic circuits. Constructed to handle pressures up to 5000 psi (350 bar) at both ports, the CXDBXZN can accommodate a flow capacity of up to 20 gpm (80 L/min), making it suitable for a wide range of medium to high-flow applications. It features Sun Hydraulics' floating style construction which minimizes risks associated with internal parts binding that might occur due to excessive installation torque or variations in cavity/cartridge machining. This design enhances the valve's reliability and longevity by reducing potential mechanical stresses. The valve fits a T10A cavity and is part of Sun\u2019s Series 1 lineup. It requires an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm) and has a valve hex size of 7/8 in. (22.2 mm). For maintenance or repair, it utilizes a Viton seal kit designated by part number 990010006, ensuring that replacements are straightforward and that downtime is minimized during service intervals. Overall, the Sun Hydraulics CXDBXZN check valve is engineered for durability and performance, providing effective solutions for hydraulic systems requiring robust, leak-tight unidirectional flow control under various operating conditions.
The Sun Hydraulics CXDBXZN (CXDBXZN) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This valve allows free flow from the inlet port 1 to the outlet port 2 while effectively blocking flow in the reverse direction, making it an essential component for systems where backflow could be problematic or where unidirectional flow is required. The CXDBXZN model stands out due to its exceptionally low leakage rate, which is less than one drop per minute (0.07 cc/min), ensuring minimal fluid loss and increased efficiency in hydraulic circuits. Constructed to handle pressures up to 5000 psi (350 bar) at both ports, the CXDBXZN can accommodate a flow capacity of up to 20 gpm (80 L/min), making it suitable for a wide range of medium to high-flow applications. It features Sun Hydraulics' floating style construction which minimizes risks associated with internal parts binding that might occur due to excessive installation torque or variations in cavity/cartridge machining. This design enhances the valve's reliability and longevity by reducing potential mechanical stresses. The valve fits a T10A cavity and is part of Sun\u2019s Series 1 lineup. It requires an installation torque between 30 - 35 lbf\u00b7ft (41 - 47 Nm) and has a valve hex size of 7/8 in. (22.2 mm). For maintenance or repair, it utilizes a Viton seal kit designated by part number 990010006, ensuring that replacements are straightforward and that downtime is minimized during service intervals. Overall, the Sun Hydraulics CXDBXZN check valve is engineered for durability and performance, providing effective solutions for hydraulic systems requiring robust, leak-tight unidirectional flow control under various operating conditions.
Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

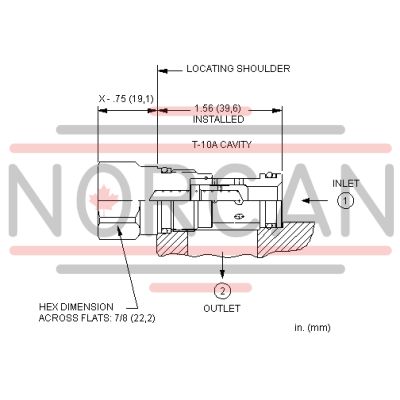

| Cavity | T-10A |
| Series | 1 |
| Capacity | 20 gpm80 L/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-010-006 |
