SUN HYDRAULICS
CXDCXDV
$40.81 USD
- SUN HYDRAULICS
- Material:CXDCXDV
- Model:CXDC-XDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXDCXDV (CXDCXDV) is a versatile and innovative hydraulic check valve designed for high-efficiency fluid control in hydraulic systems. This model operates as a standard 2-port check valve within a 3-port cavity configuration, with the third port blocked off, making it particularly useful for applications where a conventional check valve needs to fit into an existing three-port setup. The CXDCXDV boasts an extremely low leakage rate, less than 1 drop per minute (0.07 cc/min), ensuring minimal fluid loss and optimal system performance. Constructed with Sun's floating style design, the CXDCXDV minimizes potential internal part misalignment or binding that could arise from over-torquing during installation or from variations in cavity/cartridge machining. This feature enhances the reliability and longevity of the valve under various operational conditions. It is designed to fit into a T11A cavity and is part of the Series 1 lineup from Sun Hydraulics. With a flow capacity of up to 20 gpm (80 L/min) and able to withstand a maximum operating pressure of 5000 psi (350 bar), this check valve is equipped to handle rigorous industrial applications. Its hex size for installation measures 7/8 in. (22.2 mm), and it requires an installation torque between 30 \u2013 35 lbf ft (41 \u2013 47 Nm). For maintenance or repairs, Viton seal kits are available under part number: 990011006. The Sun Hydraulics CXDCXDV represents a robust solution for enhancing hydraulic circuit functionality by combining traditional check valve operations with adaptability for specialized port configurations.
The Sun Hydraulics CXDCXDV (CXDCXDV) is a versatile and innovative hydraulic check valve designed for high-efficiency fluid control in hydraulic systems. This model operates as a standard 2-port check valve within a 3-port cavity configuration, with the third port blocked off, making it particularly useful for applications where a conventional check valve needs to fit into an existing three-port setup. The CXDCXDV boasts an extremely low leakage rate, less than 1 drop per minute (0.07 cc/min), ensuring minimal fluid loss and optimal system performance. Constructed with Sun's floating style design, the CXDCXDV minimizes potential internal part misalignment or binding that could arise from over-torquing during installation or from variations in cavity/cartridge machining. This feature enhances the reliability and longevity of the valve under various operational conditions. It is designed to fit into a T11A cavity and is part of the Series 1 lineup from Sun Hydraulics. With a flow capacity of up to 20 gpm (80 L/min) and able to withstand a maximum operating pressure of 5000 psi (350 bar), this check valve is equipped to handle rigorous industrial applications. Its hex size for installation measures 7/8 in. (22.2 mm), and it requires an installation torque between 30 \u2013 35 lbf ft (41 \u2013 47 Nm). For maintenance or repairs, Viton seal kits are available under part number: 990011006. The Sun Hydraulics CXDCXDV represents a robust solution for enhancing hydraulic circuit functionality by combining traditional check valve operations with adaptability for specialized port configurations.

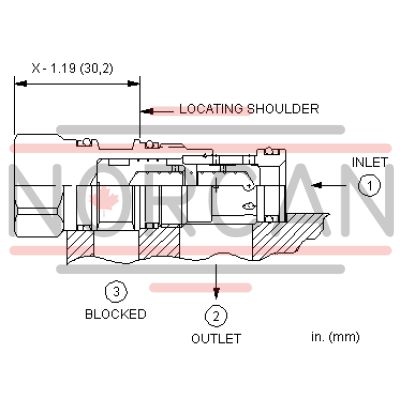

Free-flow, nose-to-side cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 20 gpm80 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-011-006 |
