SUN HYDRAULICS
CXDFXHN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

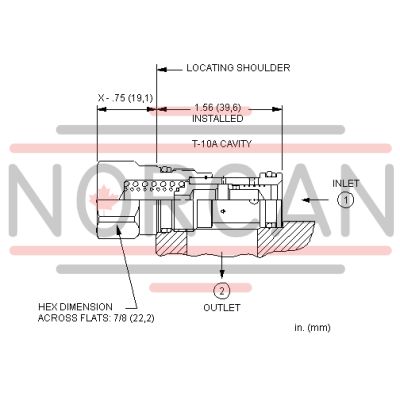

The Sun Hydraulics CXDFXHN (CXDFXHN) is a hydraulic valve designed for high-performance applications in hot oil shuttle assemblies. It features a unique configuration where two valves are positioned nose to nose with a pin in between, forming an efficient low side shuttle system. This valve is housed in a T10A cavity and belongs to the Series 1 category, ensuring compatibility and ease of integration with various hydraulic setups. With a capacity of 10 gallons per minute (approximately 40 liters per minute), the CXDFXHN provides robust flow rates suitable for demanding operations. The valve has a hex size of 7/8 inches (22.2 mm) and requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm), allowing for secure and reliable installation. Additionally, it utilizes Viton seals (part number 990010006) known for their durability and resistance to high temperatures, making them ideal for handling hot oils. This direct-acting valve type is preferred for applications needing fast response times and high tolerance to contamination, providing stable and robust performance under varying conditions. The design ensures that the valve operates efficiently, maintaining stability even in environments with fluctuating pressure levels or flow rates. This makes the CXDFXHN an excellent choice for hydraulic circuits requiring precise control over fluid dynamics within compact spaces.
