SUN HYDRAULICS
CXEBXBV
$93.62 USD
- SUN HYDRAULICS
- Material:CXEBXBV
- Model:CXEB-XBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXEBXBV (CXEBXBV) is a high-performance hydraulic check valve designed for medium pressure systems. This model features a free flow from the inlet port 2 to the outlet port 1, while effectively blocking flow in the reverse direction, making it ideal for applications requiring unidirectional flow control. The CXEBXBV is equipped with a Delrin seat, which provides durability and reliability even in environments with dirty fluids. This material choice ensures that the valve remains functional under less than optimal conditions without compromising performance. With a maximum operating pressure of 3000 psi (210 bar) and a flow capacity of up to 30 gpm (120 L/min), the CXEBXBV is capable of handling significant system demands. The valve also boasts an extremely low leakage rate of less than one drop per minute (0.07 cc/min), highlighting its efficiency and effectiveness in preventing fluid loss. Installation considerations include a hex size of 1-1/8 inches (28.6 mm) and an installation torque between 45 - 50 lbf ft (61 - 68 Nm), ensuring easy integration into existing hydraulic systems. The CXEBXBV utilizes Sun\u2019s floating style construction which minimizes internal parts binding due to installation torque or variations in cavity/cartridge machining, enhancing its operational reliability. Weighing just 0.40 lbs (0.20 kg), this model is lightweight yet robust, suitable for various hydraulic applications where space and weight are critical factors. The valve's design also makes it an excellent choice for circuit correction purposes in systems with previously incorrect manifold drillings, proving its versatility and utility in maintaining system integrity.
The Sun Hydraulics CXEBXBV (CXEBXBV) is a high-performance hydraulic check valve designed for medium pressure systems. This model features a free flow from the inlet port 2 to the outlet port 1, while effectively blocking flow in the reverse direction, making it ideal for applications requiring unidirectional flow control. The CXEBXBV is equipped with a Delrin seat, which provides durability and reliability even in environments with dirty fluids. This material choice ensures that the valve remains functional under less than optimal conditions without compromising performance. With a maximum operating pressure of 3000 psi (210 bar) and a flow capacity of up to 30 gpm (120 L/min), the CXEBXBV is capable of handling significant system demands. The valve also boasts an extremely low leakage rate of less than one drop per minute (0.07 cc/min), highlighting its efficiency and effectiveness in preventing fluid loss. Installation considerations include a hex size of 1-1/8 inches (28.6 mm) and an installation torque between 45 - 50 lbf ft (61 - 68 Nm), ensuring easy integration into existing hydraulic systems. The CXEBXBV utilizes Sun\u2019s floating style construction which minimizes internal parts binding due to installation torque or variations in cavity/cartridge machining, enhancing its operational reliability. Weighing just 0.40 lbs (0.20 kg), this model is lightweight yet robust, suitable for various hydraulic applications where space and weight are critical factors. The valve's design also makes it an excellent choice for circuit correction purposes in systems with previously incorrect manifold drillings, proving its versatility and utility in maintaining system integrity.

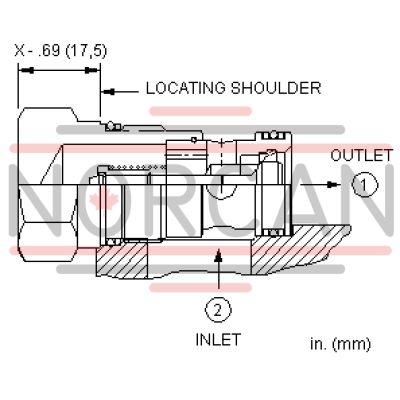

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-203-006 |
