SUN HYDRAULICS
CXEBXFN
$87.17 USD
- SUN HYDRAULICS
- Material:CXEBXFN
- Model:CXEB-XFN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXEBXFN (CXEBXFN) is a robust check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a free-flow, side-to-nose configuration which allows fluid to flow freely from the inlet port 2 to the outlet port 1 while blocking reverse flow. It is particularly suited for applications in medium pressure systems where there may be exposure to dirt and where high flows or extreme temperatures are not factors, thanks to its Delrin seat. The CXEBXFN valve is engineered for installation in T5A cavity, with a Series 2 frame size. It supports a maximum flow capacity of 30 gpm (120 L/min) and can handle pressures up to 3000 psi (210 bar). One of its key attributes is its extremely low leakage rate, ensuring less than one drop per minute (0.07 cc/min), which makes it an excellent choice for systems where minimal fluid loss is critical. This model incorporates Sun\u2019s floating style construction, which minimizes risks associated with internal parts binding\u2014this can occur due to over-torquing during installation or variations in cavity or cartridge machining. The valve has a hex size of 1-1/8 inches (28.6 mm) and requires an installation torque between 45 - 50 lbf\u00b7ft (61 - 68 Nm). The lightweight design of the valve, weighing only about 0.40 lb (0.20 kg), adds an additional layer of convenience during handling and installation. Furthermore, this check valve is considered a circuit saver for existing circuits with incorrect manifold drillings by providing effective blockage against reverse flows while maintaining system integrity and performance. The use of Viton seals ensures enhanced durability and compatibility with various hydraulic fluids under different operational conditions.
The Sun Hydraulics CXEBXFN (CXEBXFN) is a robust check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a free-flow, side-to-nose configuration which allows fluid to flow freely from the inlet port 2 to the outlet port 1 while blocking reverse flow. It is particularly suited for applications in medium pressure systems where there may be exposure to dirt and where high flows or extreme temperatures are not factors, thanks to its Delrin seat. The CXEBXFN valve is engineered for installation in T5A cavity, with a Series 2 frame size. It supports a maximum flow capacity of 30 gpm (120 L/min) and can handle pressures up to 3000 psi (210 bar). One of its key attributes is its extremely low leakage rate, ensuring less than one drop per minute (0.07 cc/min), which makes it an excellent choice for systems where minimal fluid loss is critical. This model incorporates Sun\u2019s floating style construction, which minimizes risks associated with internal parts binding\u2014this can occur due to over-torquing during installation or variations in cavity or cartridge machining. The valve has a hex size of 1-1/8 inches (28.6 mm) and requires an installation torque between 45 - 50 lbf\u00b7ft (61 - 68 Nm). The lightweight design of the valve, weighing only about 0.40 lb (0.20 kg), adds an additional layer of convenience during handling and installation. Furthermore, this check valve is considered a circuit saver for existing circuits with incorrect manifold drillings by providing effective blockage against reverse flows while maintaining system integrity and performance. The use of Viton seals ensures enhanced durability and compatibility with various hydraulic fluids under different operational conditions.

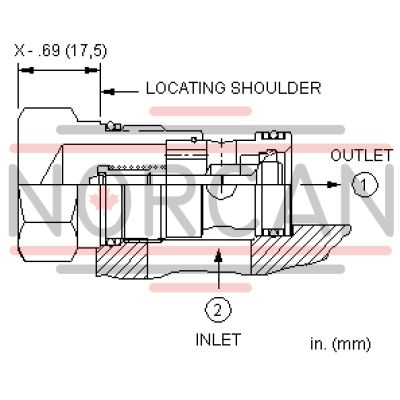

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-203-006 |
