SUN HYDRAULICS
CXEBXZN
$89.15 USD
- SUN HYDRAULICS
- Material:CXEBXZN
- Model:CXEB-XZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXEBXZN (CXEBXZN) is a highly efficient hydraulic check valve designed for medium-pressure systems that may contain dirty fluids. This model features a Delrin seat, making it particularly suitable for environments where the fluid might carry particulate matter, though it is not designed for high flow or high-temperature applications. The valve facilitates free flow from inlet port 2 to outlet port 1 while blocking flow in the opposite direction, ensuring effective operation in hydraulic circuits. The CXEBXZN operates within a maximum pressure limit of 3000 psi (210 bar) and has a flow capacity of up to 30 gpm (120 L/min). It is built to minimize leakage, with a maximum rate of less than one drop per minute (0.07 cc/min), which speaks to its reliability and efficiency in maintaining system integrity. The check valve also incorporates Sun's floating style construction which reduces the risk of internal parts binding\u2014a common issue due to excessive installation torque or variations in cavity/cartridge machining. This model uses a T5A cavity and belongs to Series 2. It is direct-acting, which makes it robust and tolerant to contaminants, ensuring stability and fast response times under various operating conditions. Installation specifications include a hex size of 1-1/8 inches (28.6 mm) and an installation torque range of 45-50 lbf ft (61-68 Nm). The overall weight of the valve is modest at approximately 0.40 lb (0.20 kg), facilitating easy handling and integration into existing hydraulic systems. In summary, the Sun Hydraulics CXEBXZN check valve is an essential component for hydraulic circuits requiring reliable performance under medium pressures with potential exposure to dirty conditions, all while maintaining very low leakage rates and resistance against operational variances.
The Sun Hydraulics CXEBXZN (CXEBXZN) is a highly efficient hydraulic check valve designed for medium-pressure systems that may contain dirty fluids. This model features a Delrin seat, making it particularly suitable for environments where the fluid might carry particulate matter, though it is not designed for high flow or high-temperature applications. The valve facilitates free flow from inlet port 2 to outlet port 1 while blocking flow in the opposite direction, ensuring effective operation in hydraulic circuits. The CXEBXZN operates within a maximum pressure limit of 3000 psi (210 bar) and has a flow capacity of up to 30 gpm (120 L/min). It is built to minimize leakage, with a maximum rate of less than one drop per minute (0.07 cc/min), which speaks to its reliability and efficiency in maintaining system integrity. The check valve also incorporates Sun's floating style construction which reduces the risk of internal parts binding\u2014a common issue due to excessive installation torque or variations in cavity/cartridge machining. This model uses a T5A cavity and belongs to Series 2. It is direct-acting, which makes it robust and tolerant to contaminants, ensuring stability and fast response times under various operating conditions. Installation specifications include a hex size of 1-1/8 inches (28.6 mm) and an installation torque range of 45-50 lbf ft (61-68 Nm). The overall weight of the valve is modest at approximately 0.40 lb (0.20 kg), facilitating easy handling and integration into existing hydraulic systems. In summary, the Sun Hydraulics CXEBXZN check valve is an essential component for hydraulic circuits requiring reliable performance under medium pressures with potential exposure to dirty conditions, all while maintaining very low leakage rates and resistance against operational variances.

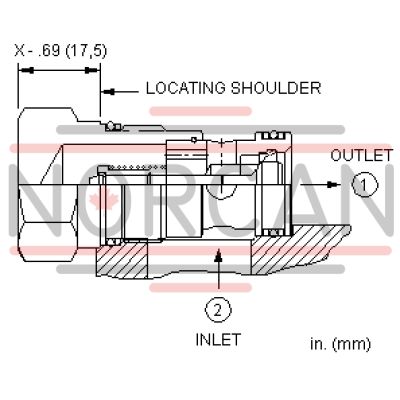

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-203-006 |
