SUN HYDRAULICS
CXECXEV
$76.84 USD
- SUN HYDRAULICS
- Material:CXECXEV
- Model:CXEC-XEV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXECXEV (CXECXEV) is a meticulously engineered check valve designed for hydraulic systems requiring reliable, one-way flow control. This model utilizes a Delrin seat, making it particularly effective in medium pressure systems that may contain some level of particulate contamination. It is not ideal for high-flow or high-temperature applications but excels in environments where durability and leak prevention are paramount. The CXECXEV offers a unique sidetonose check valve configuration, which allows free flow from port 2 to port 1 while blocking reverse flow. This configuration is essential for applications where circuit corrections are needed without reconfiguring existing manifold drillings. Notably, this model\u2019s flow capacity is approximately 30% less than that of models with a nosetoside flow path, which should be considered when designing systems for optimal performance. Featuring Sun Hydraulics' floating style construction, the CXECXEV minimizes risks associated with internal parts binding, which can occur due to over-torquing during installation or variances in cavity/cartridge machining. This design enhancement contributes significantly to the valve's robustness and longevity in challenging operational conditions. Key specifications include a maximum operating pressure of 3000 psi (210 bar), and a flow capacity up to 30 gpm (120 L/min). The valve's hex size is 1-1/8 inches (28.6 mm), with an installation torque requirement between 45-50 lbf\u00b7ft (61-68 Nm). For maintenance or repairs, a Viton seal kit (990203006) is recommended to ensure continued high performance and minimal leakage, which remains under 1 drop per minute (0.07 cc/min), showcasing its exceptional sealing capabilities.
The Sun Hydraulics CXECXEV (CXECXEV) is a meticulously engineered check valve designed for hydraulic systems requiring reliable, one-way flow control. This model utilizes a Delrin seat, making it particularly effective in medium pressure systems that may contain some level of particulate contamination. It is not ideal for high-flow or high-temperature applications but excels in environments where durability and leak prevention are paramount. The CXECXEV offers a unique sidetonose check valve configuration, which allows free flow from port 2 to port 1 while blocking reverse flow. This configuration is essential for applications where circuit corrections are needed without reconfiguring existing manifold drillings. Notably, this model\u2019s flow capacity is approximately 30% less than that of models with a nosetoside flow path, which should be considered when designing systems for optimal performance. Featuring Sun Hydraulics' floating style construction, the CXECXEV minimizes risks associated with internal parts binding, which can occur due to over-torquing during installation or variances in cavity/cartridge machining. This design enhancement contributes significantly to the valve's robustness and longevity in challenging operational conditions. Key specifications include a maximum operating pressure of 3000 psi (210 bar), and a flow capacity up to 30 gpm (120 L/min). The valve's hex size is 1-1/8 inches (28.6 mm), with an installation torque requirement between 45-50 lbf\u00b7ft (61-68 Nm). For maintenance or repairs, a Viton seal kit (990203006) is recommended to ensure continued high performance and minimal leakage, which remains under 1 drop per minute (0.07 cc/min), showcasing its exceptional sealing capabilities.

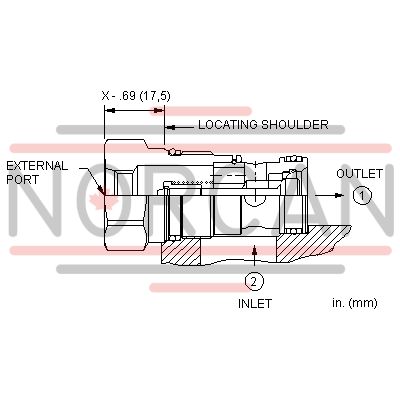

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-203-006 |
