SUN HYDRAULICS
CXEEXZV
$63.04 USD
- SUN HYDRAULICS
- Material:CXEEXZV
- Model:CXEE-XZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXEEXZV (CXEEXZV) is a specialized hydraulic check valve designed for precise fluid control in various applications. This model is distinguished by its free-flow, side-to-nose cheater check valve functionality within a 3-port cavity framework, where port 3 of the cartridge is blocked off. This unique design allows it to act as a standard 2-port check valve when implemented in existing three-port cavities, providing versatility in integration. The CXEEXZV valve supports a maximum flow capacity of 30 gallons per minute (120 liters per minute) and can handle pressures up to 5000 psi (350 bar) at ports 1 and 2. It features extremely low leakage rates, with maximum leakage constrained to less than one drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss. The valve's construction includes Sun's floating style design which minimizes internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining. Constructed to be corrosion-resistant, this valve is suitable for use in corrosive environments, an attribute indicated by specific model code suffixes (AP or LH). The physical specifications include a hex size of 1-1/8 inches (28.6 mm) and an installation torque range between 45 - 50 lbf.ft (61 - 68 Nm). Weighing just half a pound (0.25 kg), the CXEEXZV offers robust performance in a compact form factor, making it ideal for various hydraulic systems requiring reliable check valves with minimal space impact.
The Sun Hydraulics CXEEXZV (CXEEXZV) is a specialized hydraulic check valve designed for precise fluid control in various applications. This model is distinguished by its free-flow, side-to-nose cheater check valve functionality within a 3-port cavity framework, where port 3 of the cartridge is blocked off. This unique design allows it to act as a standard 2-port check valve when implemented in existing three-port cavities, providing versatility in integration. The CXEEXZV valve supports a maximum flow capacity of 30 gallons per minute (120 liters per minute) and can handle pressures up to 5000 psi (350 bar) at ports 1 and 2. It features extremely low leakage rates, with maximum leakage constrained to less than one drop per minute (0.07 cc/min), ensuring efficient operation and minimal fluid loss. The valve's construction includes Sun's floating style design which minimizes internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining. Constructed to be corrosion-resistant, this valve is suitable for use in corrosive environments, an attribute indicated by specific model code suffixes (AP or LH). The physical specifications include a hex size of 1-1/8 inches (28.6 mm) and an installation torque range between 45 - 50 lbf.ft (61 - 68 Nm). Weighing just half a pound (0.25 kg), the CXEEXZV offers robust performance in a compact form factor, making it ideal for various hydraulic systems requiring reliable check valves with minimal space impact.

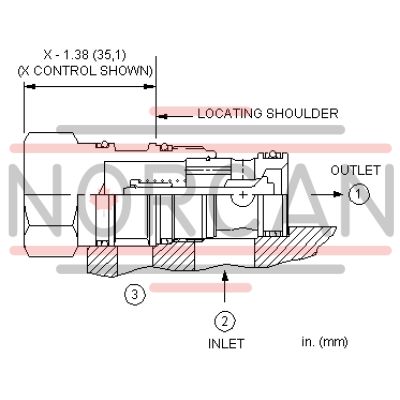

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .50 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-202-006 |
