SUN HYDRAULICS
CXFAXEV
$44.38 USD
- SUN HYDRAULICS
- Material:CXFAXEV
- Model:CXFA-XEV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXFAXEV (CXFAXEV) is a high-performance hydraulic check valve designed for efficient fluid control in hydraulic systems. This model features a free-flow mechanism that allows fluid to flow freely from the inlet port 1 to the outlet port 2 while blocking flow in the reverse direction, ensuring operational reliability and efficiency. The CXFAXEV is built to accommodate a maximum operating pressure of 5000 psi (350 bar) at both ports, making it suitable for high-pressure applications. This valve exhibits exceptionally low leakage rates, with a maximum of less than 1 drop per minute (0.07 cc/min), which contributes to maintaining system integrity and reducing fluid loss. It is compatible with T5A cavity configurations and adheres to Series 2 specifications. The valve's capacity reaches up to 40 gpm (160 L/min), catering adequately to substantial hydraulic flow requirements. Constructed with durability and resistance in mind, the CXFAXEV incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the valve\u2019s operational lifespan and reliability. For environments involving corrosive substances, specific configurations of this model use EPDM seals designed exclusively for phosphate ester fluids; however, these seals must not be exposed to petroleum-based fluids as they could degrade. The model also includes options for corrosion-resistant cartridges indicated by suffixes AP or LH in its configuration section. Overall dimensions and installation details include a hex size of 1-1/8 inches (28.6 mm) and an installation torque range of 45 - 50 lbf.ft (61 - 68 Nm), with the valve weighing approximately 0.40 lb (0.20 kg). This makes the CXFAXEV both compact and easy to integrate into various hydraulic setups without requiring significant space or complex installation procedures.
The Sun Hydraulics CXFAXEV (CXFAXEV) is a high-performance hydraulic check valve designed for efficient fluid control in hydraulic systems. This model features a free-flow mechanism that allows fluid to flow freely from the inlet port 1 to the outlet port 2 while blocking flow in the reverse direction, ensuring operational reliability and efficiency. The CXFAXEV is built to accommodate a maximum operating pressure of 5000 psi (350 bar) at both ports, making it suitable for high-pressure applications. This valve exhibits exceptionally low leakage rates, with a maximum of less than 1 drop per minute (0.07 cc/min), which contributes to maintaining system integrity and reducing fluid loss. It is compatible with T5A cavity configurations and adheres to Series 2 specifications. The valve's capacity reaches up to 40 gpm (160 L/min), catering adequately to substantial hydraulic flow requirements. Constructed with durability and resistance in mind, the CXFAXEV incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the valve\u2019s operational lifespan and reliability. For environments involving corrosive substances, specific configurations of this model use EPDM seals designed exclusively for phosphate ester fluids; however, these seals must not be exposed to petroleum-based fluids as they could degrade. The model also includes options for corrosion-resistant cartridges indicated by suffixes AP or LH in its configuration section. Overall dimensions and installation details include a hex size of 1-1/8 inches (28.6 mm) and an installation torque range of 45 - 50 lbf.ft (61 - 68 Nm), with the valve weighing approximately 0.40 lb (0.20 kg). This makes the CXFAXEV both compact and easy to integrate into various hydraulic setups without requiring significant space or complex installation procedures.

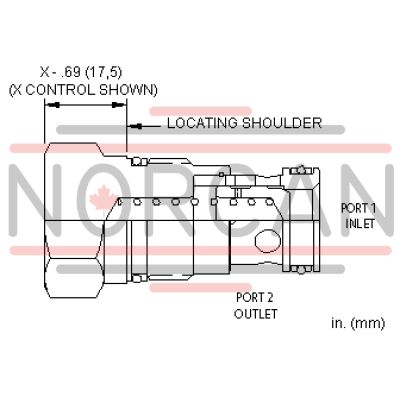

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 40 gpm160 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-203-006 |
