SUN HYDRAULICS
CXFAXFV
$46.36 USD
- SUN HYDRAULICS
- Material:CXFAXFV
- Model:CXFA-XFV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXFAXFV (CXFAXFV) is a robust check valve designed for hydraulic applications requiring reliable, unidirectional flow control. This model facilitates free flow from its inlet port 1 to the outlet port 2 while effectively blocking flow in the reverse direction. It is distinguished by its high capacity of up to 40 gpm (160 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar), making it suitable for high-pressure systems. The CXFAXFV features an extremely low leakage rate, ensuring less than one drop per minute (0.07 cc/min), which contributes to its efficiency and minimizes fluid loss in critical applications. The valve is constructed with a T5A cavity and adheres to Series 2 specifications. Its floating style construction reduces the risk of internal parts binding, a common issue caused by excessive installation torque or variations in cavity/cartridge machining. For environments involving corrosive substances, specific configurations of this valve model are available with corrosion-resistant features, indicated by a model code suffix such as AP or LH. Additionally, the cartridge can be fitted with EPDM seals designed specifically for use with phosphate ester fluids; however, these seals must not be exposed to petroleum-based fluids as they can cause damage. Installation requirements include a valve hex size of 1 1/8 inches (28.6 mm) and an installation torque between 45 - 50 lbf.ft (61 - 68 Nm). The unit's weight is minimal at approximately .40 lb (0.20 kg), facilitating easy handling and integration into various systems without adding significant weight. This check valve by Sun Hydraulics is essential for applications demanding precise flow control and reliability under high pressure and corrosive conditions.
The Sun Hydraulics CXFAXFV (CXFAXFV) is a robust check valve designed for hydraulic applications requiring reliable, unidirectional flow control. This model facilitates free flow from its inlet port 1 to the outlet port 2 while effectively blocking flow in the reverse direction. It is distinguished by its high capacity of up to 40 gpm (160 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar), making it suitable for high-pressure systems. The CXFAXFV features an extremely low leakage rate, ensuring less than one drop per minute (0.07 cc/min), which contributes to its efficiency and minimizes fluid loss in critical applications. The valve is constructed with a T5A cavity and adheres to Series 2 specifications. Its floating style construction reduces the risk of internal parts binding, a common issue caused by excessive installation torque or variations in cavity/cartridge machining. For environments involving corrosive substances, specific configurations of this valve model are available with corrosion-resistant features, indicated by a model code suffix such as AP or LH. Additionally, the cartridge can be fitted with EPDM seals designed specifically for use with phosphate ester fluids; however, these seals must not be exposed to petroleum-based fluids as they can cause damage. Installation requirements include a valve hex size of 1 1/8 inches (28.6 mm) and an installation torque between 45 - 50 lbf.ft (61 - 68 Nm). The unit's weight is minimal at approximately .40 lb (0.20 kg), facilitating easy handling and integration into various systems without adding significant weight. This check valve by Sun Hydraulics is essential for applications demanding precise flow control and reliability under high pressure and corrosive conditions.

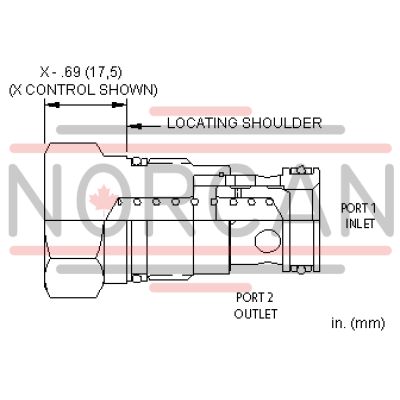

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 40 gpm160 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-203-006 |
