SUN HYDRAULICS
CXFAXZE
$134.33 USD
- SUN HYDRAULICS
- Material:CXFAXZE
- Model:CXFA-XZE
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXFAXZE (CXFAXZE) is a robust check valve designed for high-pressure hydraulic applications. This valve allows free flow from its inlet port 1 to outlet port 2 while blocking flow in the opposite direction, ensuring efficient operation in one-way flow systems. It features a T5A cavity and belongs to the Series 2, supporting a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of up to 40 gpm (160 L/min). The CXFAXZE is characterized by its exceptional leakage control, with a maximum leakage rate of less than one drop per minute (0.07 cc/min), making it ideal for applications requiring minimal fluid loss. Constructed to withstand harsh conditions, the CXFAXZE valve incorporates Sun's floating style construction which minimizes internal parts binding. This design feature is critical in preventing malfunction due to excessive installation torque or variations in cavity/cartridge machining. The valve's dimensions include a hex size of 1-1/8 inches (28.6 mm) and it requires an installation torque between 45 - 50 lbf.ft (61 - 68 Nm). Weighing just 0.40 lbs (0.20 kg), this compact unit promises easy integration into various hydraulic systems without adding significant weight. For environments involving phosphate ester fluids, cartridges configured with EPDM seals are recommended; however, these should not be exposed to petroleum-based fluids as they can damage the seals. In corrosive settings, models with suffix AP or LH should be considered due to their enhanced corrosion resistance. Overall, the Sun Hydraulics CXFAXZE check valve offers reliable performance and versatility for controlling fluid directionality under high pressures across diverse hydraulic applications.
The Sun Hydraulics CXFAXZE (CXFAXZE) is a robust check valve designed for high-pressure hydraulic applications. This valve allows free flow from its inlet port 1 to outlet port 2 while blocking flow in the opposite direction, ensuring efficient operation in one-way flow systems. It features a T5A cavity and belongs to the Series 2, supporting a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of up to 40 gpm (160 L/min). The CXFAXZE is characterized by its exceptional leakage control, with a maximum leakage rate of less than one drop per minute (0.07 cc/min), making it ideal for applications requiring minimal fluid loss. Constructed to withstand harsh conditions, the CXFAXZE valve incorporates Sun's floating style construction which minimizes internal parts binding. This design feature is critical in preventing malfunction due to excessive installation torque or variations in cavity/cartridge machining. The valve's dimensions include a hex size of 1-1/8 inches (28.6 mm) and it requires an installation torque between 45 - 50 lbf.ft (61 - 68 Nm). Weighing just 0.40 lbs (0.20 kg), this compact unit promises easy integration into various hydraulic systems without adding significant weight. For environments involving phosphate ester fluids, cartridges configured with EPDM seals are recommended; however, these should not be exposed to petroleum-based fluids as they can damage the seals. In corrosive settings, models with suffix AP or LH should be considered due to their enhanced corrosion resistance. Overall, the Sun Hydraulics CXFAXZE check valve offers reliable performance and versatility for controlling fluid directionality under high pressures across diverse hydraulic applications.

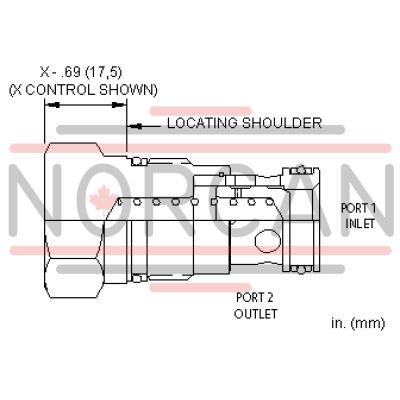

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 40 gpm160 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-203-006 |
