SUN HYDRAULICS
CXFCXCN
$44.98 USD
- SUN HYDRAULICS
- Material:CXFCXCN
- Model:CXFC-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXFCXCN (CXFCXCN) is a versatile hydraulic check valve designed for high-efficiency fluid control in various hydraulic systems. This model operates as a standard 2-port check valve within a 3-port cavity configuration, with the third port effectively blocked off. This design allows for easy integration into existing three-port systems without the need for extensive modifications, making it an ideal choice for retrofitting or upgrading hydraulic circuits. Engineered to handle a maximum flow of 40 gpm (160 L/min) and withstand pressures up to 5000 psi (350 bar), the CXFCXCN ensures reliable operation under demanding conditions. The valve features an exceptionally low leakage rate, limited to less than one drop per minute (0.07 cc/min), which enhances system efficiency and reduces fluid loss. The construction of the CXFCXCN incorporates Sun Hydraulics' floating style design, which minimizes the potential for internal parts misalignment and binding that can occur due to over-torquing during installation or from variations in cavity or cartridge machining. This feature ensures consistent performance and longevity of the valve by reducing mechanical stresses. Additionally, the valve's dimensions include a hex size of 1-1/8 inches (28.6 mm), and it requires an installation torque between 45 - 50 lbf.ft (61 - 68 Nm). The use of Viton seals in its construction provides excellent resistance to high temperatures and chemical degradation, further enhancing its durability and reliability in harsh operating environments. Overall, the Sun Hydraulics CXFCXCN check valve is designed for efficient performance in hydraulic systems requiring robust, leak-resistant check valves with easy installation features suitable for high-pressure applications.
The Sun Hydraulics CXFCXCN (CXFCXCN) is a versatile hydraulic check valve designed for high-efficiency fluid control in various hydraulic systems. This model operates as a standard 2-port check valve within a 3-port cavity configuration, with the third port effectively blocked off. This design allows for easy integration into existing three-port systems without the need for extensive modifications, making it an ideal choice for retrofitting or upgrading hydraulic circuits. Engineered to handle a maximum flow of 40 gpm (160 L/min) and withstand pressures up to 5000 psi (350 bar), the CXFCXCN ensures reliable operation under demanding conditions. The valve features an exceptionally low leakage rate, limited to less than one drop per minute (0.07 cc/min), which enhances system efficiency and reduces fluid loss. The construction of the CXFCXCN incorporates Sun Hydraulics' floating style design, which minimizes the potential for internal parts misalignment and binding that can occur due to over-torquing during installation or from variations in cavity or cartridge machining. This feature ensures consistent performance and longevity of the valve by reducing mechanical stresses. Additionally, the valve's dimensions include a hex size of 1-1/8 inches (28.6 mm), and it requires an installation torque between 45 - 50 lbf.ft (61 - 68 Nm). The use of Viton seals in its construction provides excellent resistance to high temperatures and chemical degradation, further enhancing its durability and reliability in harsh operating environments. Overall, the Sun Hydraulics CXFCXCN check valve is designed for efficient performance in hydraulic systems requiring robust, leak-resistant check valves with easy installation features suitable for high-pressure applications.

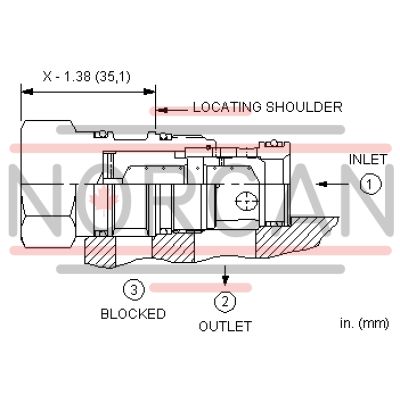

Free-flow, nose-to-side cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 40 gpm160 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-202-006 |
