SUN HYDRAULICS
CXFCXDN
$46.96 USD
- SUN HYDRAULICS
- Material:CXFCXDN
- Model:CXFC-XDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXFCXDN (CXFCXDN) is a specialized check valve designed for hydraulic circuits requiring a reliable check function in a three-port cavity setup. This valve, part of Sun Hydraulics' Series 2, utilizes a free-flow, nose-to-side cheater check configuration where the third port of the cartridge is blocked off. It operates effectively as a standard 2-port check valve in this unique arrangement. The CXFCXDN is engineered to handle flow capacities up to 40 gpm (160 L/min) and withstand maximum operating pressures up to 5000 psi (350 bar). A key feature of this model is its extremely low leakage rate, with less than one drop per minute (0.07 cc/min), ensuring high efficiency and minimal fluid loss in operation. The valve incorporates Sun\u2019s floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. This design enhances the reliability and longevity of the valve under various operational conditions. For installation, the CXFCXDN requires a hex size of 1 1/8 inches (28.6 mm) and an installation torque between 45 - 50 lbf\u00b7ft (61 - 68 Nm). It also supports Viton seals (part number: 990202006), which are known for their high temperature and chemical resistance, making them suitable for various hydraulic applications. This model fits within the T2A cavity specification, further illustrating its adaptability in different system setups where space and compatibility are critical considerations.
The Sun Hydraulics CXFCXDN (CXFCXDN) is a specialized check valve designed for hydraulic circuits requiring a reliable check function in a three-port cavity setup. This valve, part of Sun Hydraulics' Series 2, utilizes a free-flow, nose-to-side cheater check configuration where the third port of the cartridge is blocked off. It operates effectively as a standard 2-port check valve in this unique arrangement. The CXFCXDN is engineered to handle flow capacities up to 40 gpm (160 L/min) and withstand maximum operating pressures up to 5000 psi (350 bar). A key feature of this model is its extremely low leakage rate, with less than one drop per minute (0.07 cc/min), ensuring high efficiency and minimal fluid loss in operation. The valve incorporates Sun\u2019s floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. This design enhances the reliability and longevity of the valve under various operational conditions. For installation, the CXFCXDN requires a hex size of 1 1/8 inches (28.6 mm) and an installation torque between 45 - 50 lbf\u00b7ft (61 - 68 Nm). It also supports Viton seals (part number: 990202006), which are known for their high temperature and chemical resistance, making them suitable for various hydraulic applications. This model fits within the T2A cavity specification, further illustrating its adaptability in different system setups where space and compatibility are critical considerations.

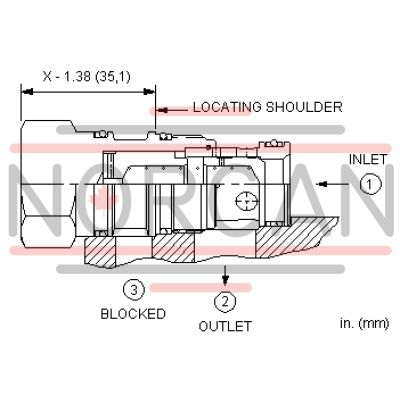

Free-flow, nose-to-side cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 40 gpm160 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-202-006 |
