SUN HYDRAULICS
CXFCXFN
$46.96 USD
- SUN HYDRAULICS
- Material:CXFCXFN
- Model:CXFC-XFN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXFCXFN (CXFCXFN) is a versatile hydraulic check valve designed for high-efficiency fluid control in various hydraulic systems. This model features a unique three-port cavity design, typically used where a standard two-port check valve is needed but only a three-port cavity is available. By blocking off port 3, the CXFCXFN functions effectively as a two-port valve, providing flexibility in application without the need for additional modifications. The CXFCXFN supports a maximum flow capacity of 40 gpm (160 L/min) and can withstand operating pressures up to 5000 psi (350 bar), making it suitable for high-pressure applications. It boasts an exceptionally low leakage rate of less than one drop per minute (0.07 cc/min), which helps in maintaining system efficiency and reducing fluid loss. Constructed with Sun\u2019s floating style, the CXFCXFN minimizes the risk of internal parts binding, which can occur due to over-torquing during installation or variations in cavity/cartridge machining. This feature ensures reliable performance and longevity of the valve even under stringent conditions. The valve requires an installation torque between 45 \u2013 50 lbf\u00b7ft (61 \u2013 68 Nm) and has a hex size of 1-1/8 inches (28.6 mm). It is compatible with Viton seal kits, specifically part number 990202006, ensuring robust sealing and operational integrity across various temperature ranges and environmental conditions. Ideal for use in systems where space or existing configurations limit modification options, the CXFCXFN offers an efficient solution to integrate check valve functionality without extensive system redesigns. Its high capacity and durable construction make it well-suited for demanding applications requiring precise flow control and minimal leakage.
The Sun Hydraulics CXFCXFN (CXFCXFN) is a versatile hydraulic check valve designed for high-efficiency fluid control in various hydraulic systems. This model features a unique three-port cavity design, typically used where a standard two-port check valve is needed but only a three-port cavity is available. By blocking off port 3, the CXFCXFN functions effectively as a two-port valve, providing flexibility in application without the need for additional modifications. The CXFCXFN supports a maximum flow capacity of 40 gpm (160 L/min) and can withstand operating pressures up to 5000 psi (350 bar), making it suitable for high-pressure applications. It boasts an exceptionally low leakage rate of less than one drop per minute (0.07 cc/min), which helps in maintaining system efficiency and reducing fluid loss. Constructed with Sun\u2019s floating style, the CXFCXFN minimizes the risk of internal parts binding, which can occur due to over-torquing during installation or variations in cavity/cartridge machining. This feature ensures reliable performance and longevity of the valve even under stringent conditions. The valve requires an installation torque between 45 \u2013 50 lbf\u00b7ft (61 \u2013 68 Nm) and has a hex size of 1-1/8 inches (28.6 mm). It is compatible with Viton seal kits, specifically part number 990202006, ensuring robust sealing and operational integrity across various temperature ranges and environmental conditions. Ideal for use in systems where space or existing configurations limit modification options, the CXFCXFN offers an efficient solution to integrate check valve functionality without extensive system redesigns. Its high capacity and durable construction make it well-suited for demanding applications requiring precise flow control and minimal leakage.

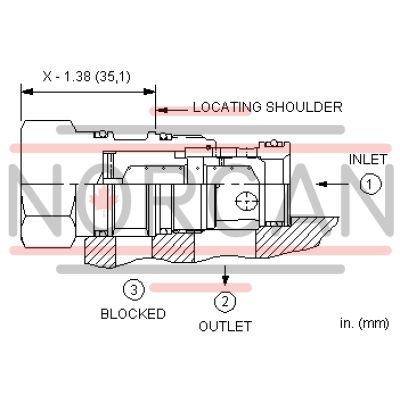

Free-flow, nose-to-side cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 40 gpm160 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Seal kit - Cartridge | Viton: 990-202-006 |
