SUN HYDRAULICS
CXFDXBV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

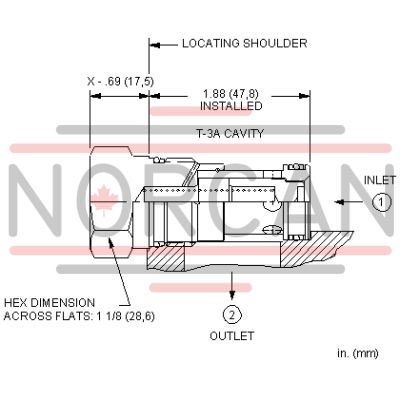

The Sun Hydraulics CXFDXBV (CXFDXBV) is a high-performance hydraulic valve designed for specific applications in hot oil shuttle assemblies. This model operates effectively within a system configuration where two valves are positioned nose to nose with a pin in between, forming a low side shuttle mechanism. The CXFDXBV is engineered to handle a capacity of up to 10 gallons per minute (approximately 40 liters per minute), making it suitable for systems requiring moderate flow handling capabilities. The valve features a T3A cavity and belongs to the Series 2 line of Sun Hydraulics products, ensuring compatibility with standard configurations in relevant hydraulic systems. It is designed with a hex size of 1 1/8 inches (28.6 mm) and requires an installation torque between 45 and 50 lbf ft (61 - 68 Nm), which facilitates secure and reliable installation. Additionally, the valve utilizes Viton seals (part of the seal kit cartridge number: 990203006), known for their high performance in varying temperatures and chemical environments, enhancing the durability and reliability of the assembly. This model employs direct-acting operation, which is preferred for applications that demand quick response times and tolerance to contamination. Direct-acting valves from Sun Hydraulics are recognized for their stability and robustness, making them an ideal choice for critical safety applications where overpressure prevention is necessary. The CXFDXBV model\u2019s specific design parameters ensure it meets the rigorous demands of specialized hydraulic circuits while maintaining efficiency and performance integrity in challenging operational conditions.
