SUN HYDRAULICS
CXGBLBV
$173.44 USD
- SUN HYDRAULICS
- Material:CXGBLBV

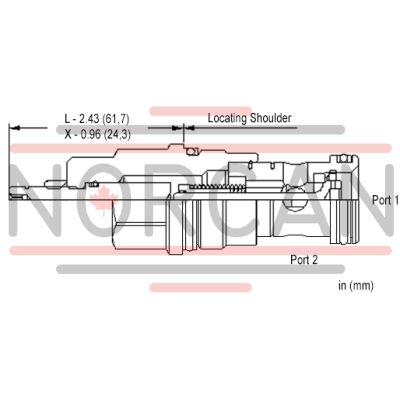

- Model:CXGB-LBV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGBLBV (CXGBLBV) is a high-performance check valve designed for medium pressure hydraulic systems. It features a unique side-to-nose free flow design, allowing fluid to flow freely from the inlet port 2 to the outlet port 1, while effectively blocking reverse flow. This configuration makes the CXGBLBV particularly suitable for applications where manifold drilling errors need correction, acting as a circuit saver by accommodating these discrepancies without requiring extensive system modifications. The valve is built with a Delrin seat, enhancing its durability and performance in environments with dirty fluids, although it is not intended for high flow or high-temperature applications. The side-to-nose check valves have a reduced capacity of approximately 30% compared to the nose-to-side models, which should be considered when designing systems to ensure adequate flow and system efficiency. Key specifications include a maximum operating pressure of 3000 psi (210 bar) and a maximum flow capacity of 60 gpm (240 L/min), making it suitable for various industrial applications within its operational limits. The CXGBLBV exhibits extremely low leakage rates, less than one drop per minute (0.07 cc/min), thanks to Sun Hydraulics' floating style construction that minimizes internal part binding due to installation torque or machining variations. The valve's robust design includes an installation torque of 150 \u2013 160 lbf\u00b7ft (203 \u2013 217 Nm) and comes with an option for Viton seals (990016006), enhancing its performance in various fluid media. Weighing only 1.60 lbs (0.70 kg), the CXGBLBV integrates seamlessly into existing hydraulic circuits, providing a reliable solution for controlling fluid direction and maintaining system integrity under medium pressure conditions.
The Sun Hydraulics CXGBLBV (CXGBLBV) is a high-performance check valve designed for medium pressure hydraulic systems. It features a unique side-to-nose free flow design, allowing fluid to flow freely from the inlet port 2 to the outlet port 1, while effectively blocking reverse flow. This configuration makes the CXGBLBV particularly suitable for applications where manifold drilling errors need correction, acting as a circuit saver by accommodating these discrepancies without requiring extensive system modifications. The valve is built with a Delrin seat, enhancing its durability and performance in environments with dirty fluids, although it is not intended for high flow or high-temperature applications. The side-to-nose check valves have a reduced capacity of approximately 30% compared to the nose-to-side models, which should be considered when designing systems to ensure adequate flow and system efficiency. Key specifications include a maximum operating pressure of 3000 psi (210 bar) and a maximum flow capacity of 60 gpm (240 L/min), making it suitable for various industrial applications within its operational limits. The CXGBLBV exhibits extremely low leakage rates, less than one drop per minute (0.07 cc/min), thanks to Sun Hydraulics' floating style construction that minimizes internal part binding due to installation torque or machining variations. The valve's robust design includes an installation torque of 150 \u2013 160 lbf\u00b7ft (203 \u2013 217 Nm) and comes with an option for Viton seals (990016006), enhancing its performance in various fluid media. Weighing only 1.60 lbs (0.70 kg), the CXGBLBV integrates seamlessly into existing hydraulic circuits, providing a reliable solution for controlling fluid direction and maintaining system integrity under medium pressure conditions.
Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
