SUN HYDRAULICS
CXGBLDN
$166.99 USD
- SUN HYDRAULICS
- Material:CXGBLDN
- Model:CXGB-LDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGBLDN (CXGBLDN) is a high-performance hydraulic check valve designed for medium pressure systems where contamination might be a concern. This model features a Delrin seat that makes it particularly suitable for environments with dirty fluids, as it can handle particulate matter without compromising its functionality. The valve facilitates free flow from inlet port 2 to outlet port 1 while effectively blocking flow in the reverse direction, ensuring reliable operation and preventing backflow. The CXGBLDN is crafted to fit the T16A cavity and belongs to the Series 3 line of Sun Hydraulics' valves. It supports a flow capacity up to 60 gpm (240 L/min) and can withstand a maximum operating pressure of 3000 psi (210 bar). One of its notable features is its extremely low leakage rate, which does not exceed 1 drop per minute (0.07 cc/min), providing an efficient sealing solution in critical applications. This model also incorporates Sun's floating style construction which minimizes the risk of internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. With a hex size requirement of 1-1/4 inches (31.8 mm) and an installation torque range between 150 \u2013 160 lbf-ft (203 \u2013 217 Nm), it ensures easy installation while maintaining robust performance. Weighing only 1.60 lbs (0.70 kg), the CXGBLDN offers a compact yet powerful solution for enhancing hydraulic circuit integrity where incorrect manifold drillings have occurred or where superior check valve performance is needed.
The Sun Hydraulics CXGBLDN (CXGBLDN) is a high-performance hydraulic check valve designed for medium pressure systems where contamination might be a concern. This model features a Delrin seat that makes it particularly suitable for environments with dirty fluids, as it can handle particulate matter without compromising its functionality. The valve facilitates free flow from inlet port 2 to outlet port 1 while effectively blocking flow in the reverse direction, ensuring reliable operation and preventing backflow. The CXGBLDN is crafted to fit the T16A cavity and belongs to the Series 3 line of Sun Hydraulics' valves. It supports a flow capacity up to 60 gpm (240 L/min) and can withstand a maximum operating pressure of 3000 psi (210 bar). One of its notable features is its extremely low leakage rate, which does not exceed 1 drop per minute (0.07 cc/min), providing an efficient sealing solution in critical applications. This model also incorporates Sun's floating style construction which minimizes the risk of internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. With a hex size requirement of 1-1/4 inches (31.8 mm) and an installation torque range between 150 \u2013 160 lbf-ft (203 \u2013 217 Nm), it ensures easy installation while maintaining robust performance. Weighing only 1.60 lbs (0.70 kg), the CXGBLDN offers a compact yet powerful solution for enhancing hydraulic circuit integrity where incorrect manifold drillings have occurred or where superior check valve performance is needed.

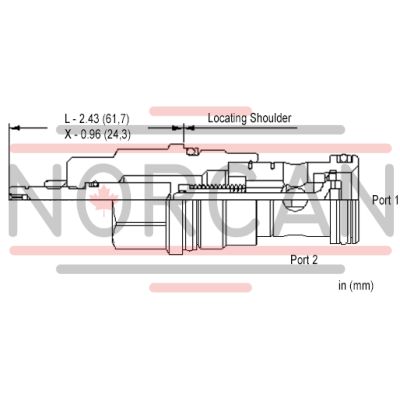

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
