SUN HYDRAULICS
CXGBLDV
$173.44 USD
- SUN HYDRAULICS
- Material:CXGBLDV
- Model:CXGB-LDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGBLDV (CXGBLDV) is a robust check valve designed for medium pressure hydraulic systems. This model features a free flow from the inlet port 2 to the outlet port 1, and blocks flow in the reverse direction, making it an ideal choice for circuit protection and correction in existing systems with incorrect manifold drillings. The Delrin seat ensures reliable performance even in environments with dirty fluids, though it is not suited for high-flow or high-temperature applications. The CXGBLDV operates effectively within a maximum operating pressure of 3000 psi (210 bar) and has a flow capacity of up to 60 gpm (240 L/min). One of its significant advantages is its extremely low leakage rate, which does not exceed 1 drop per minute (0.07 cc/min), thereby minimizing fluid loss and maintaining system integrity. This check valve utilizes Sun's floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. This model fits within a T16A cavity and is part of Sun Hydraulics' Series 3 lineup. It requires an installation torque between 150 - 160 lbf.ft (203 - 217 Nm) and has a hex size of 1-1/4 inches (31.8 mm). Weighing only about 1.60 lb (0.70 kg), it also supports Viton seals through the seal kit/cartridge number 990016006, ensuring enhanced durability against various fluids and operational conditions. This makes the CXGBLDV an efficient and reliable component for various hydraulic circuit applications where precision and durability are paramount.
The Sun Hydraulics CXGBLDV (CXGBLDV) is a robust check valve designed for medium pressure hydraulic systems. This model features a free flow from the inlet port 2 to the outlet port 1, and blocks flow in the reverse direction, making it an ideal choice for circuit protection and correction in existing systems with incorrect manifold drillings. The Delrin seat ensures reliable performance even in environments with dirty fluids, though it is not suited for high-flow or high-temperature applications. The CXGBLDV operates effectively within a maximum operating pressure of 3000 psi (210 bar) and has a flow capacity of up to 60 gpm (240 L/min). One of its significant advantages is its extremely low leakage rate, which does not exceed 1 drop per minute (0.07 cc/min), thereby minimizing fluid loss and maintaining system integrity. This check valve utilizes Sun's floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. This model fits within a T16A cavity and is part of Sun Hydraulics' Series 3 lineup. It requires an installation torque between 150 - 160 lbf.ft (203 - 217 Nm) and has a hex size of 1-1/4 inches (31.8 mm). Weighing only about 1.60 lb (0.70 kg), it also supports Viton seals through the seal kit/cartridge number 990016006, ensuring enhanced durability against various fluids and operational conditions. This makes the CXGBLDV an efficient and reliable component for various hydraulic circuit applications where precision and durability are paramount.

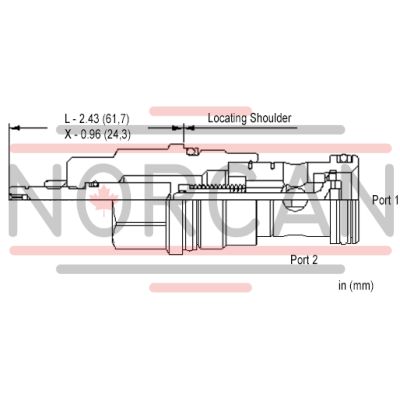

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
