SUN HYDRAULICS
CXGBLEN
$165.00 USD
- SUN HYDRAULICS
- Material:CXGBLEN
- Model:CXGB-LEN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGBLEN (CXGBLEN) is a robust and efficient hydraulic check valve designed for medium pressure systems that may contain dirty fluids. This model features a Delrin seat, making it suitable for environments where the fluid may carry particulate matter but does not experience high flow rates or temperatures. The CXGBLEN valve allows free flow from its inlet port 2 to the outlet port 1 while blocking flow in the reverse direction, ensuring directional control of fluid within hydraulic circuits. This two-port check valve shares the same cavity configuration (T16A Series 3) for its frame size, but users must be cautious of the flow paths which can be in opposite directions depending on specific applications. The CXGBLEN is particularly useful as a circuit saver in systems where manifold drillings might have been incorrectly executed. It offers a reduced capacity\u2014approximately 30% less\u2014compared to models with a nose-to-side port flow path, with a maximum capacity of 60 gpm (240 L/min). Engineered for minimal leakage, this check valve boasts an extremely low maximum leakage rate of less than one drop per minute (0.07 cc/min), ensuring system efficiency and reducing fluid loss. It incorporates Sun's floating style construction which minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining. Key specifications include a maximum operating pressure of 3000 psi (210 bar), and installation requirements such as a valve hex size of 1-1/4 inches (31.8 mm) and an installation torque range between 150 - 160 lbf\u00b7ft (203 - 217 Nm). The model weighs approximately 1.60 lb (0.70 kg), and uses Viton seals for enhanced performance under varying conditions.
The Sun Hydraulics CXGBLEN (CXGBLEN) is a robust and efficient hydraulic check valve designed for medium pressure systems that may contain dirty fluids. This model features a Delrin seat, making it suitable for environments where the fluid may carry particulate matter but does not experience high flow rates or temperatures. The CXGBLEN valve allows free flow from its inlet port 2 to the outlet port 1 while blocking flow in the reverse direction, ensuring directional control of fluid within hydraulic circuits. This two-port check valve shares the same cavity configuration (T16A Series 3) for its frame size, but users must be cautious of the flow paths which can be in opposite directions depending on specific applications. The CXGBLEN is particularly useful as a circuit saver in systems where manifold drillings might have been incorrectly executed. It offers a reduced capacity\u2014approximately 30% less\u2014compared to models with a nose-to-side port flow path, with a maximum capacity of 60 gpm (240 L/min). Engineered for minimal leakage, this check valve boasts an extremely low maximum leakage rate of less than one drop per minute (0.07 cc/min), ensuring system efficiency and reducing fluid loss. It incorporates Sun's floating style construction which minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining. Key specifications include a maximum operating pressure of 3000 psi (210 bar), and installation requirements such as a valve hex size of 1-1/4 inches (31.8 mm) and an installation torque range between 150 - 160 lbf\u00b7ft (203 - 217 Nm). The model weighs approximately 1.60 lb (0.70 kg), and uses Viton seals for enhanced performance under varying conditions.

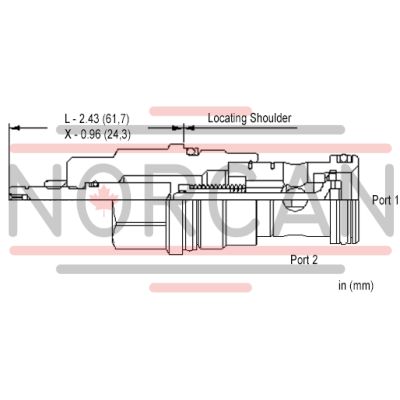

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
