SUN HYDRAULICS
CXGBLFV
$173.44 USD
- SUN HYDRAULICS
- Material:CXGBLFV
- Model:CXGB-LFV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGBLFV (CXGBLFV) is a robust hydraulic check valve designed for medium pressure systems prone to dirt and not subjected to high flows or temperatures. This model features a Delrin seat, enhancing its suitability for environments with particulate contaminants. The CXGBLFV operates by allowing free flow from inlet port 2 to outlet port 1 while blocking flow in the reverse direction, making it an essential component for circuit protection and correction in systems with manifold drilling inaccuracies. This two-port check valve fits a T16A cavity and is part of Sun Hydraulics' Series 3. It can handle a flow capacity of up to 60 gpm (240 L/min) and withstands a maximum operating pressure of 3000 psi (210 bar). One of its key attributes is its extremely low leakage rate, which does not exceed one drop per minute (0.07 cc/min), ensuring minimal fluid loss and enhanced system efficiency. The valve's construction incorporates Sun's floating style design which minimizes internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. For installation, the valve requires a hex size of 1 1/4 inches (31.8 mm) and an installation torque between 150 - 160 lbf ft (203 - 217 Nm). The model weighs approximately 1.60 lbs (0.70 kg), and utilizes Viton seals for enhanced performance under varying conditions. Overall, the CXGBLFV is engineered to be a reliable solution for existing hydraulic circuits needing precise check valves that offer both performance stability and leakage control.
The Sun Hydraulics CXGBLFV (CXGBLFV) is a robust hydraulic check valve designed for medium pressure systems prone to dirt and not subjected to high flows or temperatures. This model features a Delrin seat, enhancing its suitability for environments with particulate contaminants. The CXGBLFV operates by allowing free flow from inlet port 2 to outlet port 1 while blocking flow in the reverse direction, making it an essential component for circuit protection and correction in systems with manifold drilling inaccuracies. This two-port check valve fits a T16A cavity and is part of Sun Hydraulics' Series 3. It can handle a flow capacity of up to 60 gpm (240 L/min) and withstands a maximum operating pressure of 3000 psi (210 bar). One of its key attributes is its extremely low leakage rate, which does not exceed one drop per minute (0.07 cc/min), ensuring minimal fluid loss and enhanced system efficiency. The valve's construction incorporates Sun's floating style design which minimizes internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. For installation, the valve requires a hex size of 1 1/4 inches (31.8 mm) and an installation torque between 150 - 160 lbf ft (203 - 217 Nm). The model weighs approximately 1.60 lbs (0.70 kg), and utilizes Viton seals for enhanced performance under varying conditions. Overall, the CXGBLFV is engineered to be a reliable solution for existing hydraulic circuits needing precise check valves that offer both performance stability and leakage control.

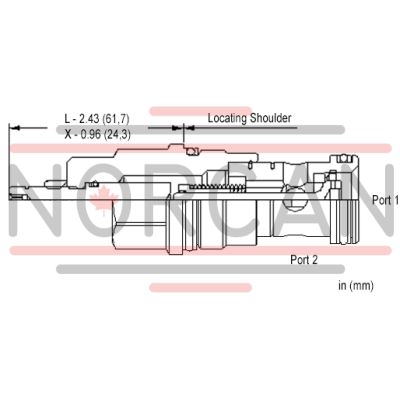

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
