SUN HYDRAULICS
CXGBXAV
$166.49 USD
- SUN HYDRAULICS
- Material:CXGBXAV
- Model:CXGB-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGBXAV (CXGBXAV) is a robust and efficient hydraulic check valve designed for medium-pressure systems that may contain dirty fluids. This model features a Delrin seat which enhances its suitability for applications where the fluid medium is not perfectly clean and does not involve high flow rates or temperatures. The CXGBXAV operates effectively with a free flow from inlet port 2 to outlet port 1, while securely blocking flow in the reverse direction, ensuring reliable one-way fluid operation essential for various hydraulic circuits. This two-port check valve fits into a T16A cavity and adheres to Series 3 specifications. With an operational capacity of up to 60 gpm (240 L/min) and a maximum operating pressure of 3000 psi (210 bar), it meets the demands of numerous hydraulic applications while maintaining a very low leakage rate\u2014less than 1 drop per minute (0.07 cc/min). This characteristic is crucial in maintaining system integrity and reducing fluid loss. The CXGBXAV is constructed using Sun's floating style design which minimizes risks associated with internal parts binding due to variations in installation torque or cartridge/cavity machining discrepancies. It has specific installation requirements with a valve hex size of 1-1/4 inches (31.8 mm) and an installation torque range between 150 - 160 lbf\u00b7ft (203 - 217 Nm). Weighing at approximately 1.60 lbs (0.70 kg), this model is relatively lightweight yet durable enough to withstand rigorous use conditions. Overall, the Sun Hydraulics CXGBXAV check valve is an essential component for systems requiring reliable performance in environments where fluid cleanliness cannot be guaranteed, making it an ideal choice for safeguarding hydraulic circuits against potential irregularities in manifold drillings or when retrofitting is necessary.
The Sun Hydraulics CXGBXAV (CXGBXAV) is a robust and efficient hydraulic check valve designed for medium-pressure systems that may contain dirty fluids. This model features a Delrin seat which enhances its suitability for applications where the fluid medium is not perfectly clean and does not involve high flow rates or temperatures. The CXGBXAV operates effectively with a free flow from inlet port 2 to outlet port 1, while securely blocking flow in the reverse direction, ensuring reliable one-way fluid operation essential for various hydraulic circuits. This two-port check valve fits into a T16A cavity and adheres to Series 3 specifications. With an operational capacity of up to 60 gpm (240 L/min) and a maximum operating pressure of 3000 psi (210 bar), it meets the demands of numerous hydraulic applications while maintaining a very low leakage rate\u2014less than 1 drop per minute (0.07 cc/min). This characteristic is crucial in maintaining system integrity and reducing fluid loss. The CXGBXAV is constructed using Sun's floating style design which minimizes risks associated with internal parts binding due to variations in installation torque or cartridge/cavity machining discrepancies. It has specific installation requirements with a valve hex size of 1-1/4 inches (31.8 mm) and an installation torque range between 150 - 160 lbf\u00b7ft (203 - 217 Nm). Weighing at approximately 1.60 lbs (0.70 kg), this model is relatively lightweight yet durable enough to withstand rigorous use conditions. Overall, the Sun Hydraulics CXGBXAV check valve is an essential component for systems requiring reliable performance in environments where fluid cleanliness cannot be guaranteed, making it an ideal choice for safeguarding hydraulic circuits against potential irregularities in manifold drillings or when retrofitting is necessary.

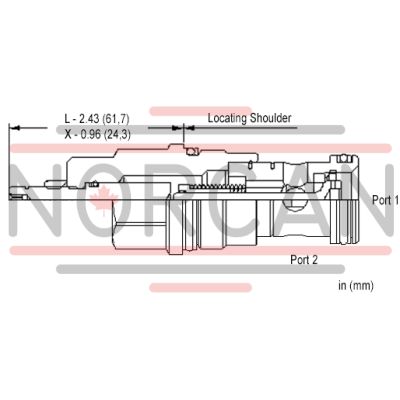

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
