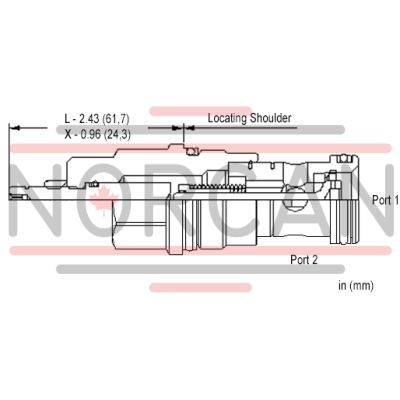

SUN HYDRAULICS
CHECK CARTRIDGE
CXGBXCV
$163.51 USD
- SUN HYDRAULICS
- Material:CXGBXCV
- Model:CXGB-XCV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGBXCV (CXGBXCV) is a robust check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a freeflow, side-to-nose configuration that allows free flow from inlet port 2 to outlet port 1 while blocking the reverse flow, making it an essential component for systems where correct manifold drilling is critical. The valve's Delrin seat makes it suitable for medium-pressure environments where the system may contain some degree of contamination, though it is not designed for high flow or high temperature applications. This particular model offers a maximum operating pressure of 3000 psi (210 bar) and has a flow capacity of up to 60 gpm (240 L/min), ensuring efficient operation in various hydraulic applications. With extremely low leakage rates, less than 1 drop per minute (0.07 cc/min), the CXGBXCV ensures minimal fluid loss and enhanced system integrity. It incorporates Sun\u2019s floating style construction which minimizes internal parts binding that can occur due to excessive installation torque or cavity/cartridge machining variations. The valve's installation requires a specific torque range between 150 and 160 lbf ft (203 - 217 Nm) and utilizes a hex size of 1-1/4 inches (31.8 mm). Weighing at approximately 1.60 lbs (0.70 kg), this model is compact yet sturdy enough for its intended applications. It also supports Viton seals as specified by the kit/cartridge number 990016006, enhancing its durability and performance in various operational conditions.
The Sun Hydraulics CXGBXCV (CXGBXCV) is a robust check valve designed for hydraulic systems requiring reliable, one-way flow control. This model features a freeflow, side-to-nose configuration that allows free flow from inlet port 2 to outlet port 1 while blocking the reverse flow, making it an essential component for systems where correct manifold drilling is critical. The valve's Delrin seat makes it suitable for medium-pressure environments where the system may contain some degree of contamination, though it is not designed for high flow or high temperature applications. This particular model offers a maximum operating pressure of 3000 psi (210 bar) and has a flow capacity of up to 60 gpm (240 L/min), ensuring efficient operation in various hydraulic applications. With extremely low leakage rates, less than 1 drop per minute (0.07 cc/min), the CXGBXCV ensures minimal fluid loss and enhanced system integrity. It incorporates Sun\u2019s floating style construction which minimizes internal parts binding that can occur due to excessive installation torque or cavity/cartridge machining variations. The valve's installation requires a specific torque range between 150 and 160 lbf ft (203 - 217 Nm) and utilizes a hex size of 1-1/4 inches (31.8 mm). Weighing at approximately 1.60 lbs (0.70 kg), this model is compact yet sturdy enough for its intended applications. It also supports Viton seals as specified by the kit/cartridge number 990016006, enhancing its durability and performance in various operational conditions.
Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
