SUN HYDRAULICS
CXGBXDV
$165.50 USD
- SUN HYDRAULICS
- Material:CXGBXDV
- Model:CXGB-XDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGBXDV (CXGBXDV) is a high-performance hydraulic check valve designed for medium pressure systems. This model features a freeflow, side-to-nose configuration that allows free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction. It is particularly effective in applications where manifold drillings may be incorrect, acting as a circuit saver by providing an alternative flow path. The CXGBXDV is built with a Delrin seat which makes it suitable for environments with dirty fluids, although it is not ideal for high flow or high temperature applications. The valve's construction includes Sun Hydraulics' floating style design which minimizes internal parts binding that might occur due to excessive installation torque or variations in cavity/cartridge machining. Key specifications of the CXGBXDV include a maximum operating pressure of 3000 psi (210 bar) and a flow capacity of up to 60 gpm (240 L/min). The valve also boasts an extremely low leakage rate, with maximum leakage less than one drop per minute (0.07 cc/min). Designed to fit a T16A cavity and part of the Series 3 lineup, this model requires an installation torque between 150 and 160 lbf.ft (203 - 217 Nm) and has a hex size of 1-1/4 inches (31.8 mm). The valve weighs approximately 1.60 lbs (0.70 kg) and can be serviced using Viton seal kits under part number: 990016006. Overall, the Sun Hydraulics CXGBXDV check valve is an efficient solution for maintaining directional control in hydraulic circuits, especially beneficial in systems where space or existing configurations pose challenges.
The Sun Hydraulics CXGBXDV (CXGBXDV) is a high-performance hydraulic check valve designed for medium pressure systems. This model features a freeflow, side-to-nose configuration that allows free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction. It is particularly effective in applications where manifold drillings may be incorrect, acting as a circuit saver by providing an alternative flow path. The CXGBXDV is built with a Delrin seat which makes it suitable for environments with dirty fluids, although it is not ideal for high flow or high temperature applications. The valve's construction includes Sun Hydraulics' floating style design which minimizes internal parts binding that might occur due to excessive installation torque or variations in cavity/cartridge machining. Key specifications of the CXGBXDV include a maximum operating pressure of 3000 psi (210 bar) and a flow capacity of up to 60 gpm (240 L/min). The valve also boasts an extremely low leakage rate, with maximum leakage less than one drop per minute (0.07 cc/min). Designed to fit a T16A cavity and part of the Series 3 lineup, this model requires an installation torque between 150 and 160 lbf.ft (203 - 217 Nm) and has a hex size of 1-1/4 inches (31.8 mm). The valve weighs approximately 1.60 lbs (0.70 kg) and can be serviced using Viton seal kits under part number: 990016006. Overall, the Sun Hydraulics CXGBXDV check valve is an efficient solution for maintaining directional control in hydraulic circuits, especially beneficial in systems where space or existing configurations pose challenges.
Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

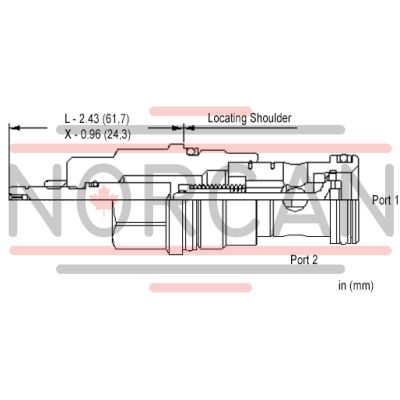

| Cavity | T-16A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
