SUN HYDRAULICS
CXGBXZV
$167.48 USD
- SUN HYDRAULICS
- Material:CXGBXZV
- Model:CXGB-XZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGBXZV (CXGBXZV) is a precision-engineered check valve designed for hydraulic systems requiring reliable, unidirectional flow control. This model features a freeflow, side-to-nose configuration that permits free flow from inlet port 2 to outlet port 1 while blocking reverse flow to safeguard system components. The valve's Delrin seat makes it particularly suitable for medium-pressure systems that may contain some degree of contamination but do not experience extreme flows or temperatures. With its T16A cavity and Series 3 designation, the CXGBXZV can handle a maximum flow capacity of 60 gallons per minute (240 liters per minute) and withstand pressures up to 3000 psi (210 bar). Its design ensures minimal leakage, maintaining less than one drop per minute (0.07 cc/min), which is crucial for maintaining system efficiency and preventing fluid loss. The construction of the CXGBXZV incorporates Sun's floating style design, which reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the valve\u2019s operational reliability and lifespan. It has a specific valve hex size of 1\u00bc inches (31.8 mm) and requires an installation torque between 150 and 160 lbf\u00b7ft (203 - 217 Nm). The model weighs approximately 1.60 pounds (0.70 kg). This check valve is an excellent choice for existing circuits needing correction in manifold drillings without extensive redesigns, providing a practical solution for circuit modifications with its straightforward installation requirements and robust performance characteristics.
The Sun Hydraulics CXGBXZV (CXGBXZV) is a precision-engineered check valve designed for hydraulic systems requiring reliable, unidirectional flow control. This model features a freeflow, side-to-nose configuration that permits free flow from inlet port 2 to outlet port 1 while blocking reverse flow to safeguard system components. The valve's Delrin seat makes it particularly suitable for medium-pressure systems that may contain some degree of contamination but do not experience extreme flows or temperatures. With its T16A cavity and Series 3 designation, the CXGBXZV can handle a maximum flow capacity of 60 gallons per minute (240 liters per minute) and withstand pressures up to 3000 psi (210 bar). Its design ensures minimal leakage, maintaining less than one drop per minute (0.07 cc/min), which is crucial for maintaining system efficiency and preventing fluid loss. The construction of the CXGBXZV incorporates Sun's floating style design, which reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances the valve\u2019s operational reliability and lifespan. It has a specific valve hex size of 1\u00bc inches (31.8 mm) and requires an installation torque between 150 and 160 lbf\u00b7ft (203 - 217 Nm). The model weighs approximately 1.60 pounds (0.70 kg). This check valve is an excellent choice for existing circuits needing correction in manifold drillings without extensive redesigns, providing a practical solution for circuit modifications with its straightforward installation requirements and robust performance characteristics.

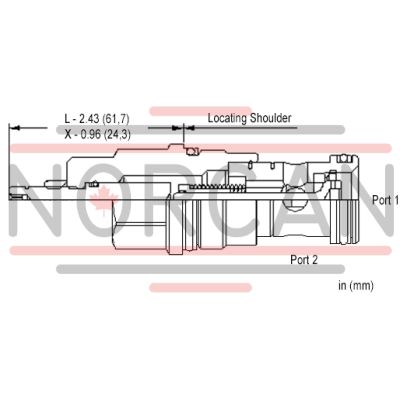

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- The Delrin seat is suitable for dirty, medium pressure systems that are not subjected to high flows or temperatures.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 3000 psi210 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-016-006 |
