SUN HYDRAULICS
CXGELCN
$107.52 USD
- SUN HYDRAULICS
- Material:CXGELCN
- Model:CXGE-LCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXGELCN (CXGELCN) is a specialized hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi (350 bar) at ports 1 and 2. This model is distinctive because it functions as a standard two-port check valve within a three-port cavity configuration, where port 3 of the cartridge is blocked off. This design feature makes the CXGELCN particularly useful in circuits that require a check valve in an existing three-port cavity but do not use the third port. With a maximum flow capacity of 60 gpm (240 L/min), the CXGELCN ensures efficient fluid control in various hydraulic systems. It features exceptionally low leakage rates, with a maximum valve leakage specified at less than one drop per minute (0.07 cc/min), ensuring minimal fluid loss and enhanced system integrity. The valve's construction includes Sun's floating style design, which minimizes internal parts binding\u2014a common issue that can arise due to excessive installation torque or variations in cavity/cartridge machining. The CXGELCN also boasts corrosion-resistant capabilities, although specific models with enhanced corrosion resistance are indicated by suffixes AP or LH in their model codes. For installation, this valve requires a hex size of 1 1/4 inches (31.8 mm) and an installation torque between 150 and 160 lbf-ft (203 - 217 Nm). Its compact design results in a modest weight of approximately 1.60 lbs (0.70 kg), facilitating easier handling and integration into various hydraulic setups. Overall, the Sun Hydraulics CXGELCN check valve is engineered for reliability and precision in controlling fluid flow within high-pressure environments, making it an essential component for advanced hydraulic systems requiring robust performance with minimal leakage.
The Sun Hydraulics CXGELCN (CXGELCN) is a specialized hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi (350 bar) at ports 1 and 2. This model is distinctive because it functions as a standard two-port check valve within a three-port cavity configuration, where port 3 of the cartridge is blocked off. This design feature makes the CXGELCN particularly useful in circuits that require a check valve in an existing three-port cavity but do not use the third port. With a maximum flow capacity of 60 gpm (240 L/min), the CXGELCN ensures efficient fluid control in various hydraulic systems. It features exceptionally low leakage rates, with a maximum valve leakage specified at less than one drop per minute (0.07 cc/min), ensuring minimal fluid loss and enhanced system integrity. The valve's construction includes Sun's floating style design, which minimizes internal parts binding\u2014a common issue that can arise due to excessive installation torque or variations in cavity/cartridge machining. The CXGELCN also boasts corrosion-resistant capabilities, although specific models with enhanced corrosion resistance are indicated by suffixes AP or LH in their model codes. For installation, this valve requires a hex size of 1 1/4 inches (31.8 mm) and an installation torque between 150 and 160 lbf-ft (203 - 217 Nm). Its compact design results in a modest weight of approximately 1.60 lbs (0.70 kg), facilitating easier handling and integration into various hydraulic setups. Overall, the Sun Hydraulics CXGELCN check valve is engineered for reliability and precision in controlling fluid flow within high-pressure environments, making it an essential component for advanced hydraulic systems requiring robust performance with minimal leakage.

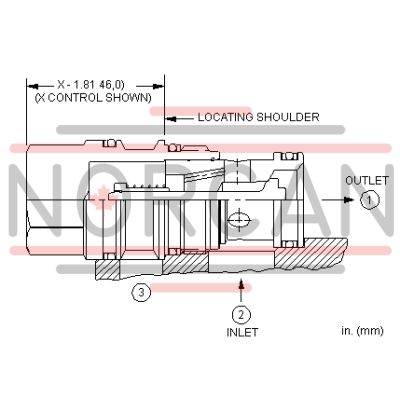

Free-flow, side-to-nose cheater check valves function as a standard 2-port check valve in a 3-port cavity with port 3 of the cartridge blocked off. These valves are useful in circuits where a check valve is required in an existing three port cavity.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.60 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
